RT314A24

RT314A24

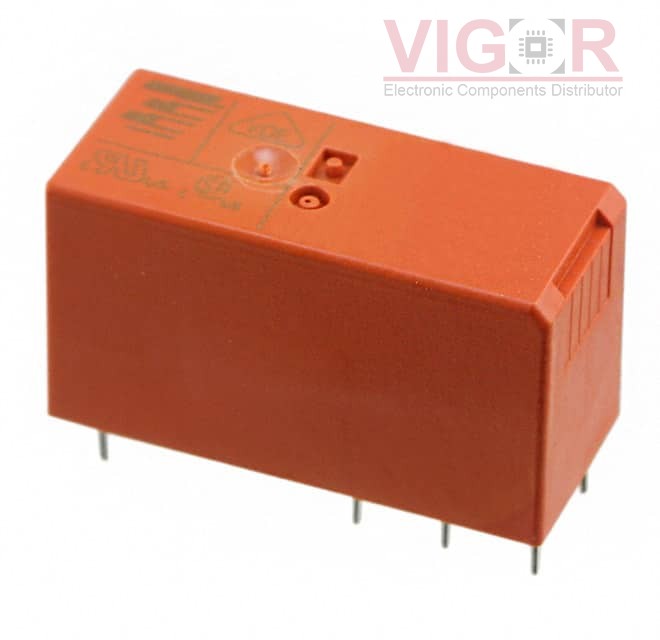

Image is for reference,
please contact us to get the real picture

Part No :

RT314A24

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPDT 16A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 04 - Oct 08 2025
DataSheet
RT314A24 PDF
Availability
1208 pieces
Unit Price
$6.35000

Current price of RT314A24 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RT314A24 Specifications
Type Description
Series:RT1 Bistable, SCHRACK
Package:Tube
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):16 A
Switching Voltage:400VAC - Max
Coil Current:16.7 mA
Coil Type:Latching, Single Coil
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class F
Must Operate Voltage:16.8 VDC
Must Release Voltage:-
Operate Time:10 ms
Release Time:10 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
