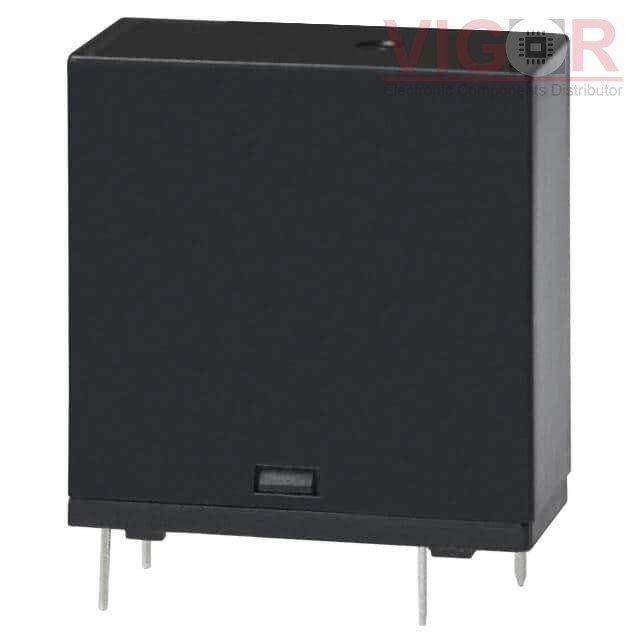

LKP1AF-5V

Part No :: LKP1AF-5V

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 10A 5V

Catalog: Power Relays, Over 2 Amps

DataSheet: LKP1AF-5V PDF

Availability: 46 pieces

Current price of LKP1AF-5V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LKP1AF-5V Specifications

Type	Description
Series:	LK-P
Package:	Bulk
Part Status:	Not For New Designs
Mounting Type:	Through Hole
Coil Voltage:	5VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	10 A
Switching Voltage:	277VAC, 30VDC - Max
Coil Current:	106 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	-
Must Operate Voltage:	3.5 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	15 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
