RZ03-1A4-D005

RZ03-1A4-D005

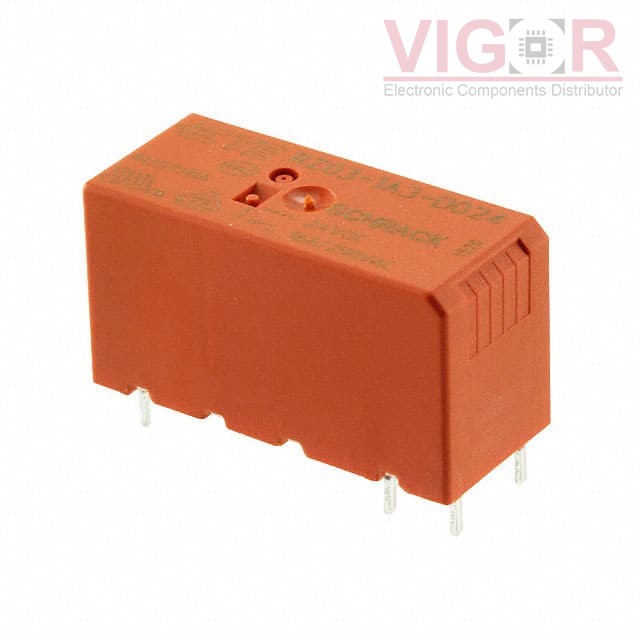

Image is for reference,
please contact us to get the real picture

Part No :

RZ03-1A4-D005

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPST 16A 5V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 08 - Oct 12 2025
DataSheet
RZ03-1A4-D005 PDF
Availability
0 pieces
Unit Price
$2.04000

Current price of RZ03-1A4-D005 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RZ03-1A4-D005 Specifications
Type Description
Series:RZ, SCHRACK
Package:Tube
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:5VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:400VAC - Max
Coil Current:84 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:Class F
Must Operate Voltage:3.5 VDC
Must Release Voltage:0.5 VDC
Operate Time:8 ms
Release Time:6 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ALZ11B05

ALZ11B05

RELAY GEN PURPOSE SPDT 16A 5V
HOT MY4 DC100/110 (S)

MY4 DC100/110 (S)

RELAY GEN PURPOSE 4PDT 3A 110V

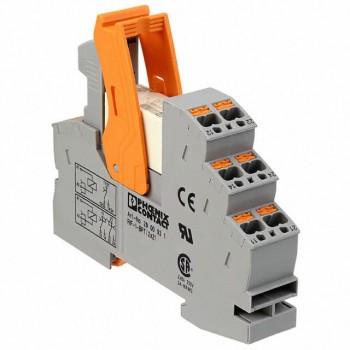

HOT 2903332
