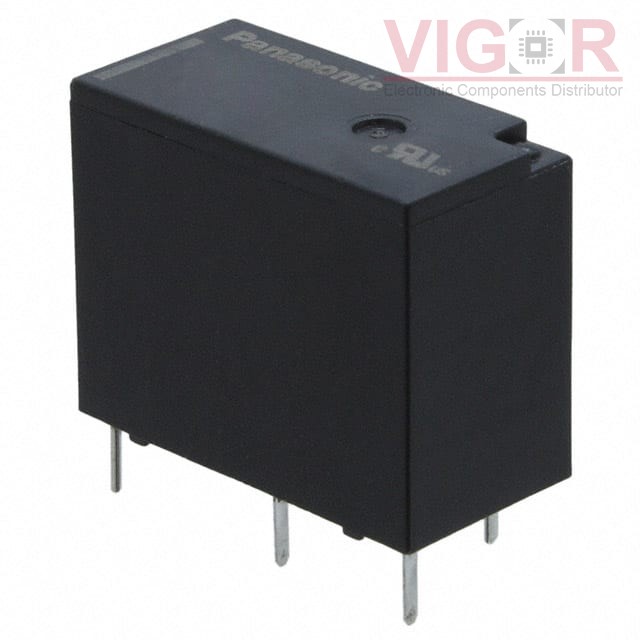

ALQ1F09

Part No :: ALQ1F09

Manufacturer: Panasonic

Description: LQ RELAY, 1 FORM C, CLASS F COIL

Catalog: Power Relays, Over 2 Amps

DataSheet: ALQ1F09 PDF

Availability: 98 pieces

Current price of ALQ1F09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ALQ1F09 Specifications

Type	Description
Series:	ALQ
Package:	Box
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	9VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	10 A
Switching Voltage:	250VAC - Max
Coil Current:	44.4 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	Class F
Must Operate Voltage:	6.75 VDC
Must Release Voltage:	0.45 VDC
Operate Time:	20 ms
Release Time:	20 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose
