PE014F05

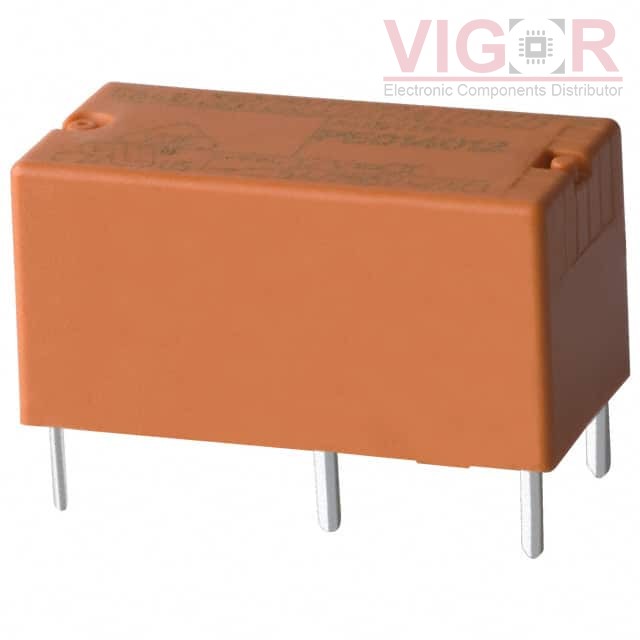

Product image
Product thumb
Part No :

PE014F05

Manufacturer
TE Connectivity Potter & Brumfield Relays
VIGOR # :

2693748

Description
RELAY GENERAL PURPOSE SPDT 5A 5V
Catalog
Power Relays, Over 2 Amps
DataSheet
PE014F05 PDF
Country of origin
-
Date code
-
ads
PE014F05 Specifications
Type Description
Series:PE Bistable, SCHRACK
Package:Tube
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:5VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):5 A
Switching Voltage:400VAC - Max
Coil Current:40 mA
Coil Type:Latching, Single Coil
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:-
Must Operate Voltage:3.75 VDC
Must Release Voltage:-
Operate Time:8 ms
Release Time:8 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 341
Shipped from
HK warehouse
Expected Shipping Date
Apr 09 - Apr 13 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $6.6100 $6.61
10 $6.1961 $61.96
25 $5.5076 $137.69
50 $5.2321 $261.60
100 $4.9568 $495.68
250 $4.4060 $1 101.50
500 $4.1306 $2 065.32
1000 $3.8553 $3 855.26

Current price of PE014F05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
