RZ03-1C4-D005

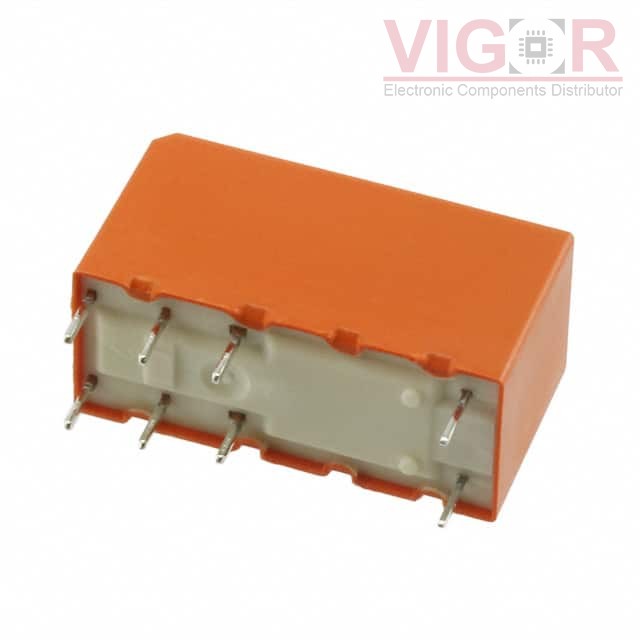

Product image
Product thumb
Part No :

RZ03-1C4-D005

Manufacturer
TE Connectivity Potter & Brumfield Relays
VIGOR # :

2694455

Description
RELAY GEN PURPOSE SPDT 16A 5V
Catalog
Power Relays, Over 2 Amps
DataSheet
RZ03-1C4-D005 PDF
Country of origin
-
Date code
-
ads
RZ03-1C4-D005 Specifications
Type Description
Series:RZ, SCHRACK
Package:Tube
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:5VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):16 A
Switching Voltage:400VAC - Max
Coil Current:84 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:Class F
Must Operate Voltage:3.5 VDC
Must Release Voltage:0.5 VDC
Operate Time:8 ms
Release Time:6 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 14 - Jan 18 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.13 $2.13
20 $2.00 $39.97
40 $1.78 $71.05
60 $1.69 $101.25
100 $1.60 $159.87
260 $1.42 $369.48
500 $1.33 $666.14
1000 $1.24 $1 243.46
5000 $1.20 $5 995.25

Current price of RZ03-1C4-D005 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
1-1415898-4

1-1415898-4

RELAY GEN PURPOSE SPST 16A 24V

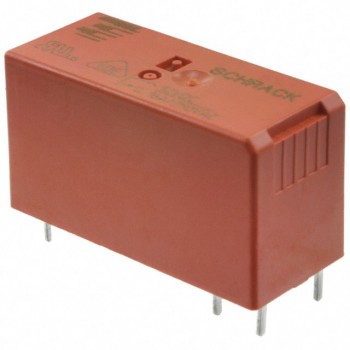

RTX3-1AT-B012
