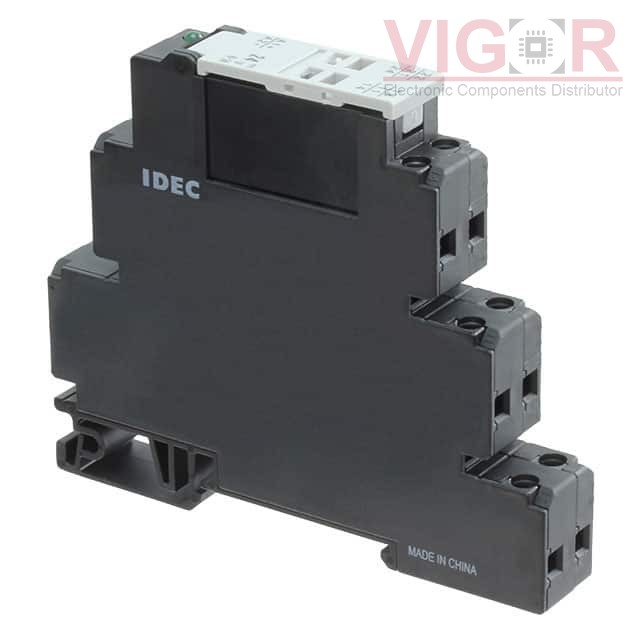

RV8H-1S1-AD24-C1D2

Part No :: RV8H-1S1-AD24-C1D2

Manufacturer: IDEC

VIGOR # :: 2694584

Description: RELAY GEN PURPOSE SPDT 12A 24V

Catalog: Power Relays, Over 2 Amps

DataSheet: RV8H-1S1-AD24-C1D2 PDF

Country of origin: -

Date code: -

RV8H-1S1-AD24-C1D2 Specifications

Type	Description
Series:	RV8
Package:	Bulk
Part Status:	Active
Mounting Type:	DIN Rail
Coil Voltage:	24VAC/DC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	12 A
Switching Voltage:	250VAC - Nom
Coil Current:	21 mA
Coil Type:	Non Latching
Features:	Socket Included
Termination Style:	Spring Terminal
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	19.2 VAC/DC
Must Release Voltage:	1.68 VAC/DC
Operate Time:	15 ms
Release Time:	15 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 19

Shipped from

HK warehouse

Expected Shipping Date

Apr 11 - Apr 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$24.2000~~	~~$24.20~~
10	~~$22.9900~~	~~$229.90~~
25	~~$21.7800~~	~~$544.50~~
50	~~$20.5700~~	~~$1 028.50~~
100	~~$19.3600~~	~~$1 936.00~~
250	~~$18.1500~~	~~$4 537.50~~
500	~~$16.9400~~	~~$8 470.00~~

Current price of RV8H-1S1-AD24-C1D2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
