APAN3118

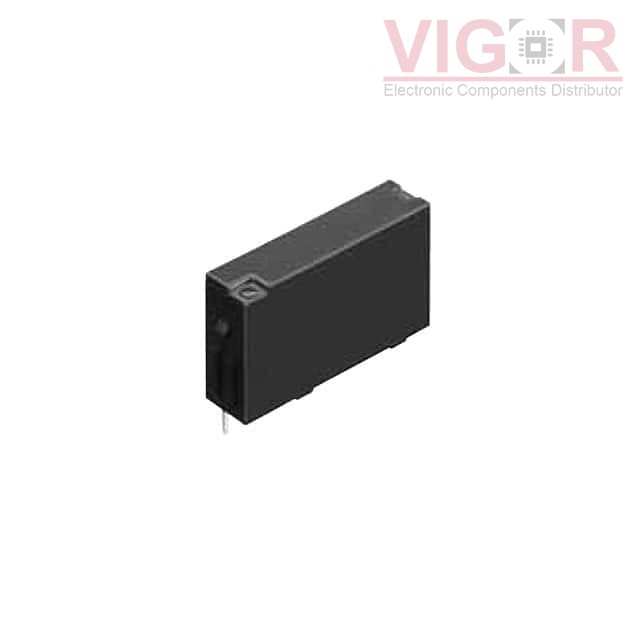

Image is for reference,
please contact us to get the real picture

Part No :: APAN3118

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 5A 18V

Catalog: Power Relays, Over 2 Amps

DataSheet: APAN3118 PDF

Availability: 0 pieces

Unit Price: ~~$5.26000~~

Current price of APAN3118 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APAN3118 Specifications

Type	Description
Series:	PA-N
Package:	Tube
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	18VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	5 A
Switching Voltage:	250VAC, 110VDC - Max
Coil Current:	6.1 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	-
Must Operate Voltage:	12.6 VDC
Must Release Voltage:	0.9 VDC
Operate Time:	10 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 90°C
Contact Material:	Silver Nickel (AgNi), Gold (Au)
Relay Type:	General Purpose
