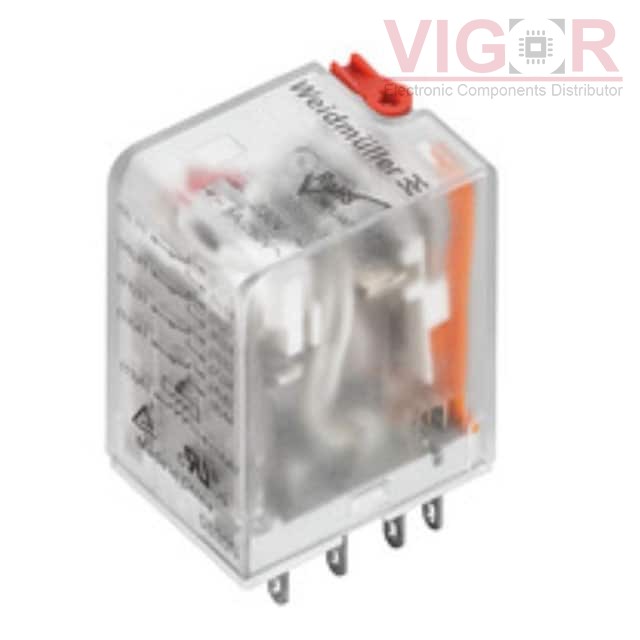

7760056103

Part No :: 7760056103

Manufacturer: Weidmuller

VIGOR # :: 2696529

Description: RELAY GEN PURPOSE 4PDT 10A 115V

Catalog: Power Relays, Over 2 Amps

DataSheet: 7760056103 PDF

Country of origin: -

Date code: -

7760056103 Specifications

Type	Description
Series:	DRM
Package:	Bulk
Part Status:	Active
Mounting Type:	Socketable
Coil Voltage:	115VAC
Contact Form:	4PDT (4 Form C)
Contact Rating (Current):	10 A
Switching Voltage:	250VAC - Max
Coil Current:	10.8 mA
Coil Type:	Non Latching
Features:	Lighted Indicator, Test Button
Termination Style:	Plug In
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	92 VAC
Must Release Voltage:	34.5 VAC
Operate Time:	20 ms
Release Time:	20 ms
Operating Temperature:	-40°C ~ 55°C
Contact Material:	Silver Alloy
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 5240

Shipped from

HK warehouse

Expected Shipping Date

Jan 09 - Jan 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$10.27~~	~~$10.27~~
10	~~$9.63~~	~~$96.29~~
25	~~$8.56~~	~~$213.98~~
50	~~$8.13~~	~~$406.56~~
100	~~$7.70~~	~~$770.32~~
250	~~$6.85~~	~~$1 711.84~~
500	~~$6.42~~	~~$3 209.69~~
1000	~~$5.99~~	~~$5 991.42~~

Current price of 7760056103 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

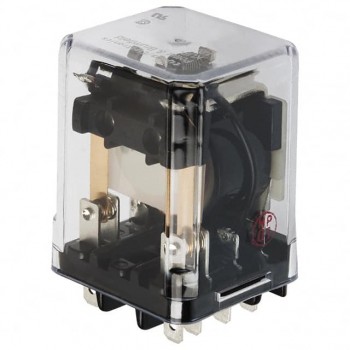

KUP-14D45-12

RELAY GEN PURPOSE 3PDT 10A 12V

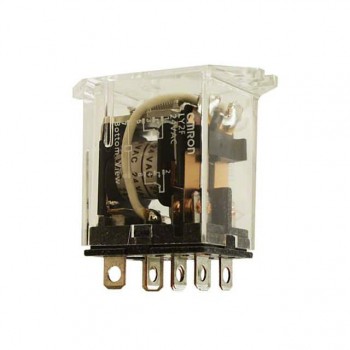

LY2F-AC24

RELAY GEN PURPOSE DPDT 10A 24V

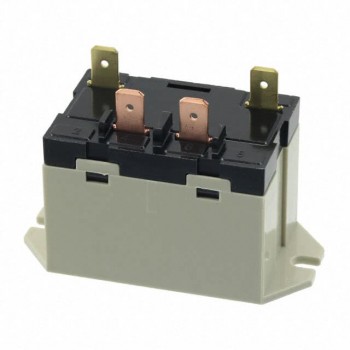

G7L-1A-T-CB-DC48
