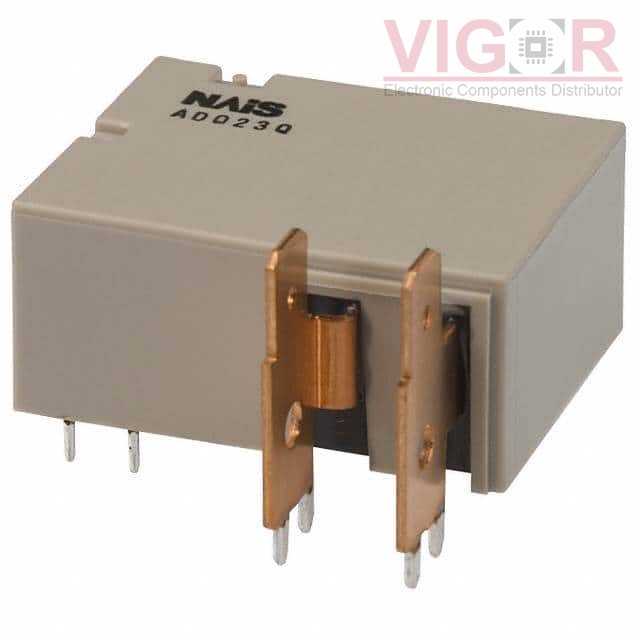

ADQ13Q009

Part No :: ADQ13Q009

Manufacturer: Panasonic

VIGOR # :: 4556161

Description: RELAY GEN PURPOSE SPST 30A 9V

Catalog: Power Relays, Over 2 Amps

DataSheet: ADQ13Q009 PDF

Country of origin: -

Date code: -

ADQ13Q009 Specifications

Type	Description
Series:	ADQ
Package:	Tube
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	9VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	30 A
Switching Voltage:	250VAC - Max
Coil Current:	55.6 mA
Coil Type:	Latching, Single Coil
Features:	-
Termination Style:	PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:	Sealed - Fully
Coil Insulation:	-
Must Operate Voltage:	6.3 VDC
Must Release Voltage:	-
Operate Time:	20 ms
Release Time:	20 ms
Operating Temperature:	-40°C ~ 65°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
