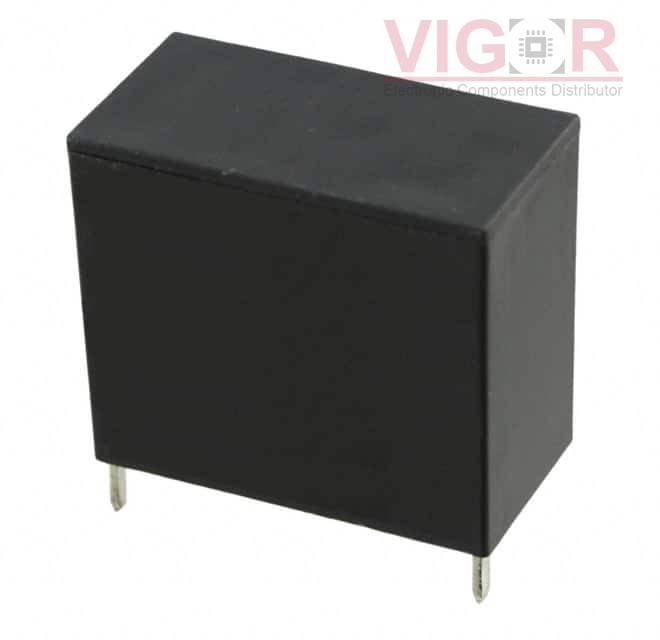

JM1AN-P-DC5V

Part No :: JM1AN-P-DC5V

Manufacturer: Panasonic

VIGOR # :: 4556171

Description: RELAY GEN PURPOSE SPST 20A 5V

Catalog: Power Relays, Over 2 Amps

DataSheet: JM1AN-P-DC5V PDF

Country of origin: -

Date code: -

JM1AN-P-DC5V Specifications

Type	Description
Series:	JM
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	5VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	20 A
Switching Voltage:	250VAC - Max
Coil Current:	180 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	3.5 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	20 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 60°C
Contact Material:	Silver Alloy
Relay Type:	General Purpose
