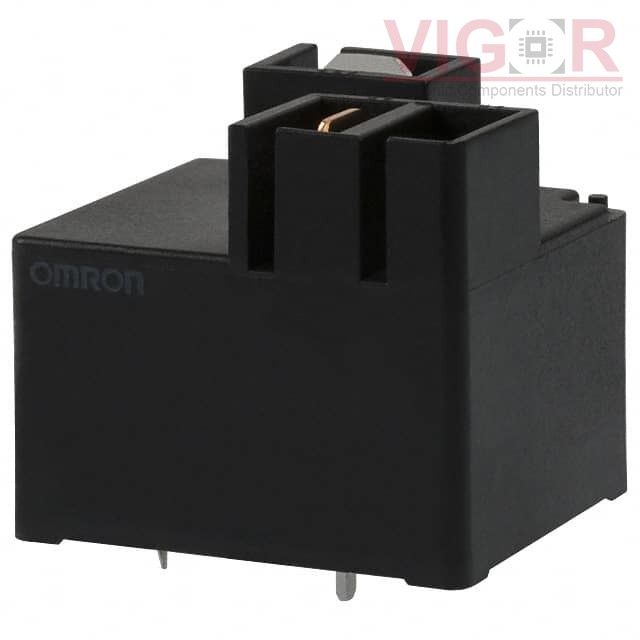

G8P-1A4TP DC22

Part No :: G8P-1A4TP DC22

Manufacturer: Omron Electronics Components

VIGOR # :: 4556338

Description: RELAY GEN PURPOSE SPST 30A 22V

Catalog: Power Relays, Over 2 Amps

DataSheet: G8P-1A4TP DC22 PDF

Country of origin: -

Date code: -

G8P-1A4TP DC22 Specifications

Type	Description
Series:	G8P
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	22VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	30 A
Switching Voltage:	250VAC, 28VDC - Max
Coil Current:	41 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	16.5 VDC
Must Release Voltage:	2.2 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-55°C ~ 105°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose
