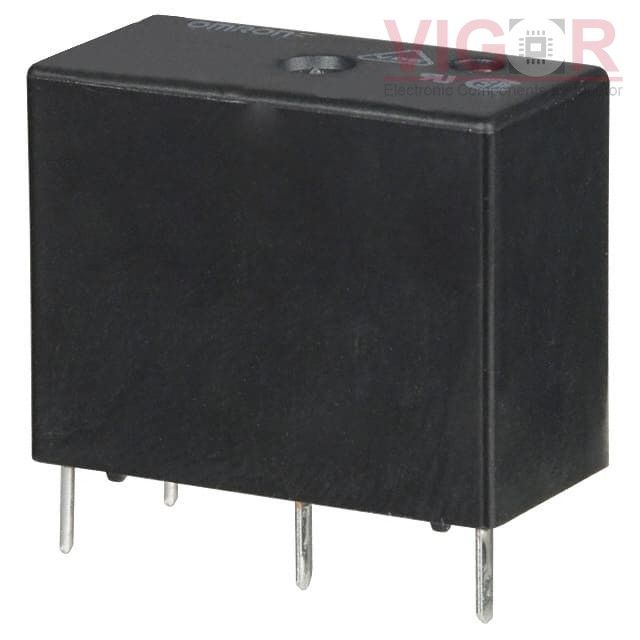

G5SB-1 DC12

Part No :: G5SB-1 DC12

Manufacturer: Omron Electronics Components

VIGOR # :: 4556709

Description: RELAY GEN PURPOSE SPDT 5A 12V

Catalog: Power Relays, Over 2 Amps

DataSheet: G5SB-1 DC12 PDF

Country of origin: -

Date code: -

G5SB-1 DC12 Specifications

Type	Description
Series:	G5SB
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	5 A
Switching Voltage:	250VAC, 30VDC - Max
Coil Current:	33.3 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	-
Must Operate Voltage:	9 VDC
Must Release Voltage:	0.6 VDC
Operate Time:	10 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Alloy
Relay Type:	General Purpose
