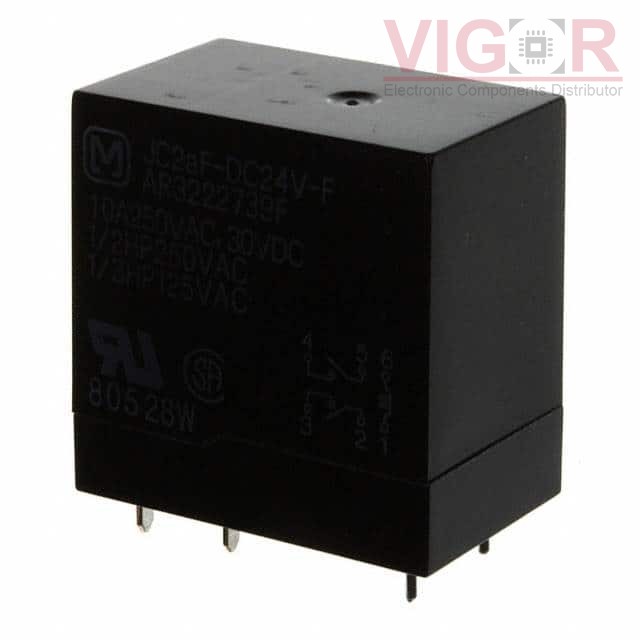

JC2A-DC24V

Part No :: JC2A-DC24V

Manufacturer: Panasonic

VIGOR # :: 4556751

Description: RELAY GEN PURPOSE DPST 10A 24V

Catalog: Power Relays, Over 2 Amps

DataSheet: JC2A-DC24V PDF

Country of origin: -

Date code: -

JC2A-DC24V Specifications

Type	Description
Series:	JC
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	24VDC
Contact Form:	DPST-NO (2 Form A)
Contact Rating (Current):	10 A
Switching Voltage:	250VAC - Max
Coil Current:	41.6 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	19.2 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	15 ms
Release Time:	2 ms
Operating Temperature:	-50°C ~ 60°C
Contact Material:	Silver Alloy
Relay Type:	General Purpose
