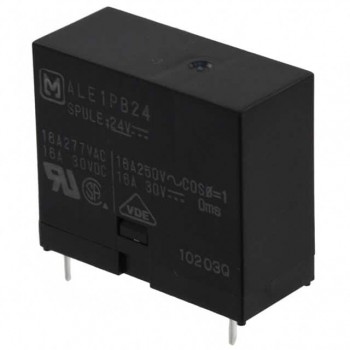

ALE15B09

Part No :: ALE15B09

Manufacturer: Panasonic

VIGOR # :: 4556977

Description: RELAY GEN PURPOSE SPST 16A 9V

Catalog: Power Relays, Over 2 Amps

DataSheet: ALE15B09 PDF

Country of origin: -

Date code: -

ALE15B09 Specifications

Type	Description
Series:	ALE
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	9VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	16 A
Switching Voltage:	277VAC - Max
Coil Current:	44.4 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	Class B
Must Operate Voltage:	6.75 VDC
Must Release Voltage:	0.45 VDC
Operate Time:	20 ms
Release Time:	20 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
