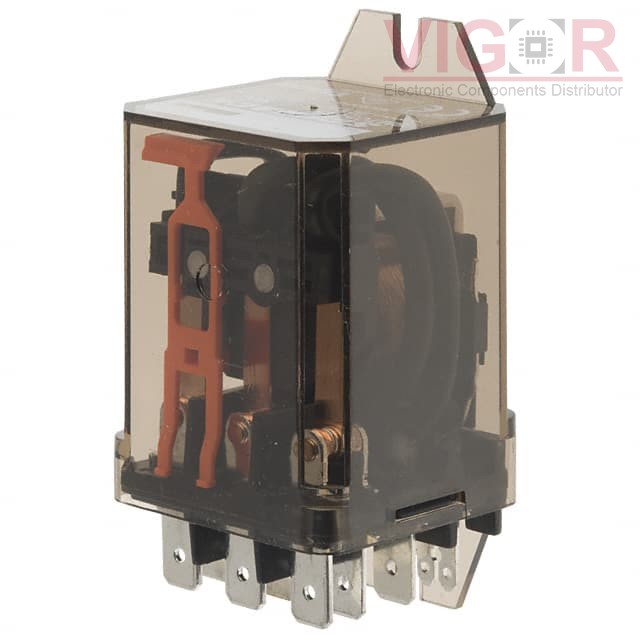

RM238012

Part No :: RM238012

Manufacturer: TE Connectivity Potter & Brumfield Relays

VIGOR # :: 4557677

Description: RELAY GEN PURPOSE DPDT 16A 12V

Catalog: Power Relays, Over 2 Amps

DataSheet: RM238012 PDF

Country of origin: -

Date code: -

RM238012 Specifications

Type	Description
Series:	RM, SCHRACK
Package:	Tray
Part Status:	Obsolete
Mounting Type:	DIN Rail
Coil Voltage:	12VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	16 A
Switching Voltage:	440VAC - Max
Coil Current:	109 mA
Coil Type:	Non Latching
Features:	Mechanical Indicator, Test Button
Termination Style:	Quick Connect - 0.250" (6.3mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-45°C ~ 70°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	General Purpose
