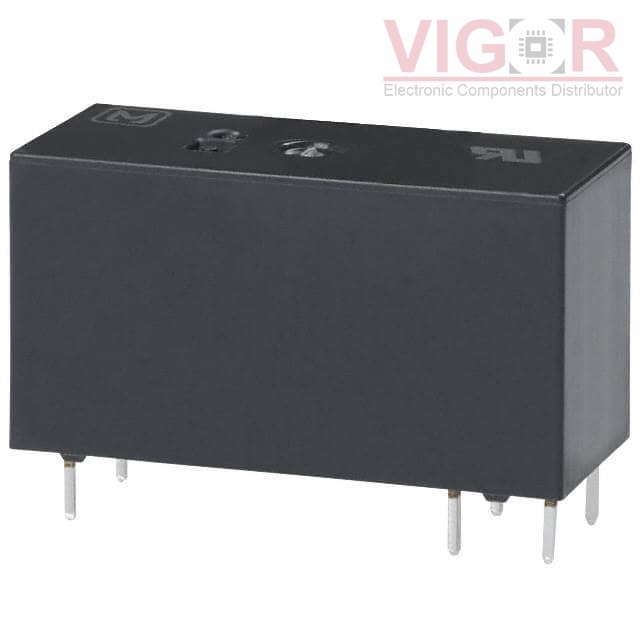

ALZ22B18

Part No :: ALZ22B18

Manufacturer: Panasonic

VIGOR # :: 4557728

Description: RELAY GEN PURPOSE SPST 16A 18V

Catalog: Power Relays, Over 2 Amps

DataSheet: ALZ22B18 PDF

Country of origin: -

Date code: -

ALZ22B18 Specifications

Type	Description
Series:	ALZ
Package:	Tube
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	18VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	16 A
Switching Voltage:	440VAC - Max
Coil Current:	22.2 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	Class B
Must Operate Voltage:	12.6 VDC
Must Release Voltage:	1.8 VDC
Operate Time:	15 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose
