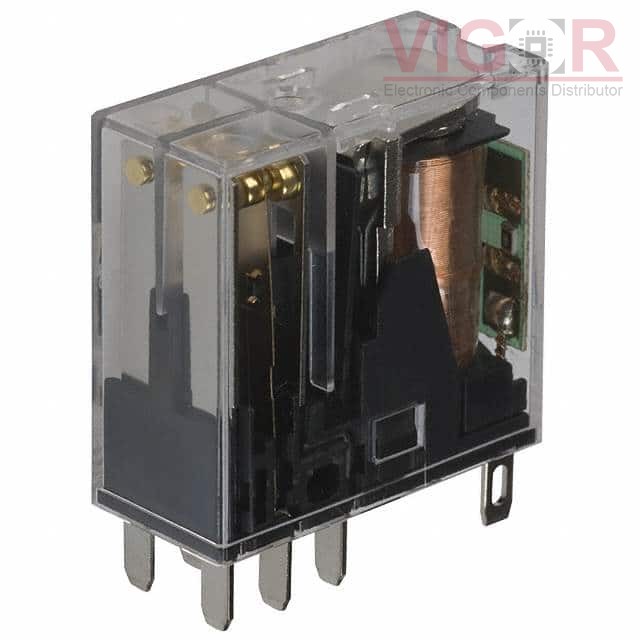

AHN211X1

Part No :: AHN211X1

Manufacturer: Panasonic

VIGOR # :: 4558311

Description: RELAY GEN PURPOSE DPDT 5A 120V

Catalog: Power Relays, Over 2 Amps

DataSheet: AHN211X1 PDF

Country of origin: -

Date code: -

AHN211X1 Specifications

Type	Description
Series:	AHN
Package:	Tube
Part Status:	Obsolete
Mounting Type:	Socketable
Coil Voltage:	120VAC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	5 A
Switching Voltage:	250VAC, 30VDC - Max
Coil Current:	9.7 mA
Coil Type:	Non Latching
Features:	Lighted Indicator
Termination Style:	Plug In
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	96 VAC
Must Release Voltage:	36 VAC
Operate Time:	15 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose
