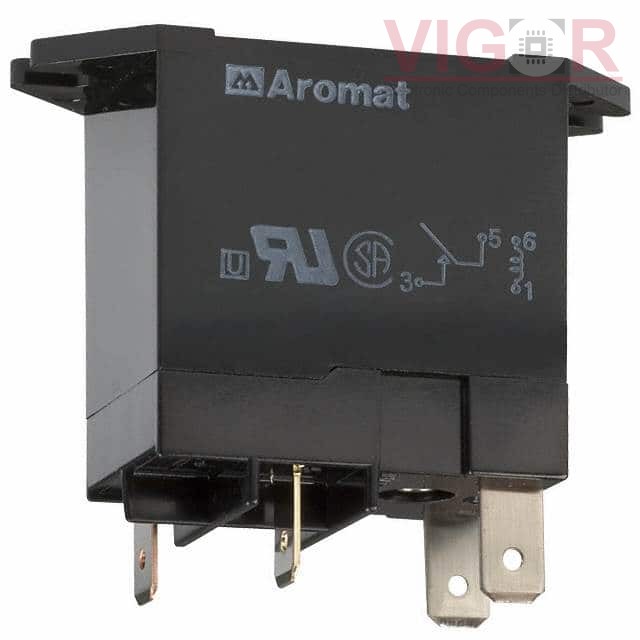

JC1AF-TM-DC5V

Part No :: JC1AF-TM-DC5V

Manufacturer: Panasonic

VIGOR # :: 4558452

Description: RELAY GEN PURPOSE SPST 15A 5V

Catalog: Power Relays, Over 2 Amps

DataSheet: JC1AF-TM-DC5V PDF

Country of origin: -

Date code: -

JC1AF-TM-DC5V Specifications

Type	Description
Series:	JC
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Chassis Mount
Coil Voltage:	5VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	15 A
Switching Voltage:	250VAC - Max
Coil Current:	180 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.187" (4.7mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	4 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	15 ms
Release Time:	2 ms
Operating Temperature:	-50°C ~ 60°C
Contact Material:	Silver Alloy
Relay Type:	General Purpose
