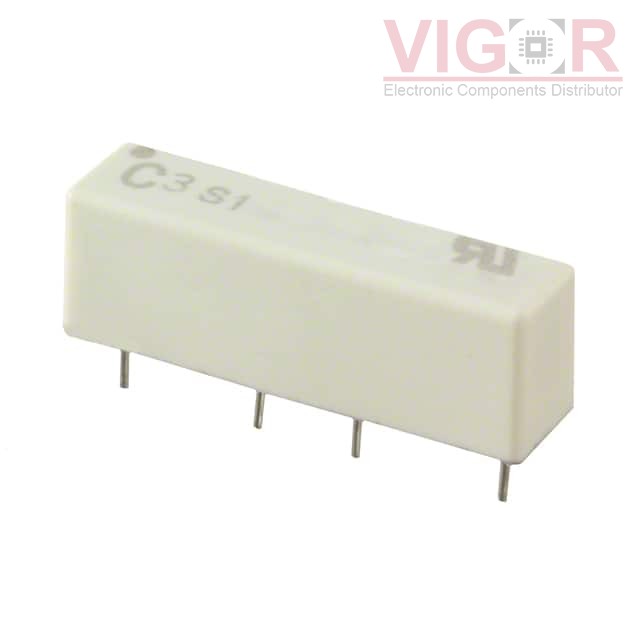

S1-0504D

Part No :: S1-0504D

Manufacturer: Sensata Technologies – Cynergy3

VIGOR # :: 4194148

Description: RELAY REED 4KV SPST 5V SIP W/DIO

Catalog: Reed Relays

DataSheet: S1-0504D PDF

Country of origin: -

Date code: -

S1-0504D Specifications

Type	Description
Series:	S1
Package:	Bulk
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	5VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	1 A
Switching Voltage:	300VAC, 350VDC - Max
Coil Current:	27.8 mA
Coil Type:	Non Latching
Features:	Diode
Termination Style:	PC Pin
Seal Rating:	-
Must Operate Voltage:	4 VDC
Must Release Voltage:	1.25 VDC
Operate Time:	1 ms
Release Time:	0.5 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Rhodium (Rh)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 36

Shipped from

HK warehouse

Expected Shipping Date

Dec 30 - Jan 03 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$17.70~~	~~$17.70~~
10	~~$16.86~~	~~$168.62~~
50	~~$16.09~~	~~$804.43~~
100	~~$15.62~~	~~$1 561.61~~

Current price of S1-0504D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
