ACASA1002S5002P100

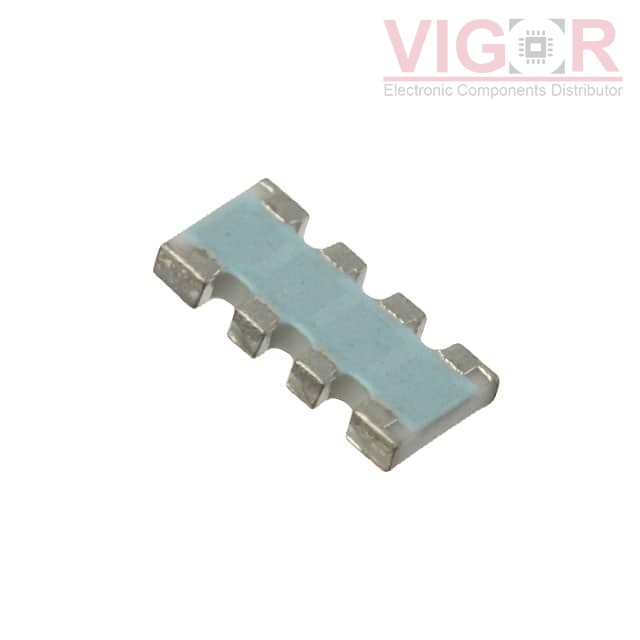

Image is for reference,
please contact us to get the real picture

Part No :: ACASA1002S5002P100

Manufacturer: Vishay / Beyschlag

Description: RES ARRAY 4 RES MULT OHM 1206

Catalog: Arrays/Networks Resistors

DataSheet: ACASA1002S5002P100 PDF

Availability: 925 pieces

Unit Price: ~~$0.72000~~

Current price of ACASA1002S5002P100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACASA1002S5002P100 Specifications

Type	Description
Series:	ACA - Precision
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit Type:	Isolated
Resistance (Ohms):	10k, 50k
Tolerance:	±0.1%
Number of Resistors:	4
Resistor Matching Ratio:	±0.05%
Resistor-Ratio-Drift:	±15ppm/°C
Number of Pins:	8
Power Per Element:	100mW
Temperature Coefficient:	±25ppm/°C
Operating Temperature:	-55°C ~ 125°C
Applications:	Voltage Divider (TCR Matched)
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric), Convex, Long Side Terminals
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max):	0.022" (0.55mm)

Please confirm the specifications of the products when ordering.
