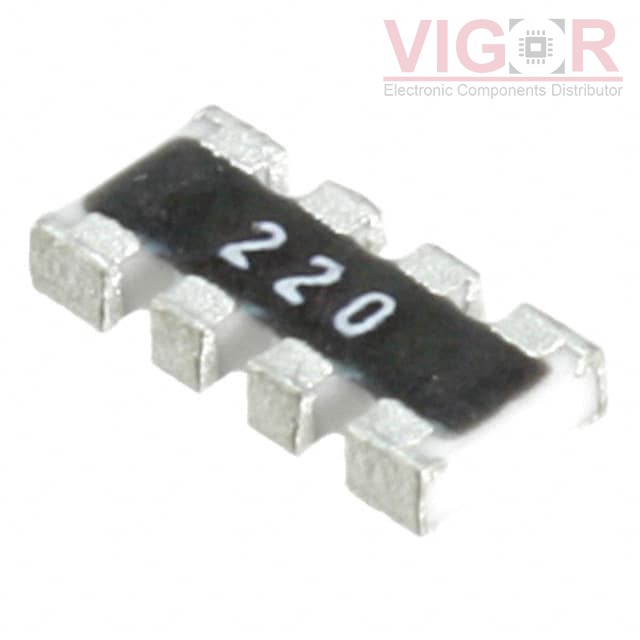

RP164PJ561CS

Part No :: RP164PJ561CS

Manufacturer: Samsung Electro-Mechanics

VIGOR # :: 4256732

Description: RES ARRAY 4 RES 560 OHM 1206

Catalog: Arrays/Networks Resistors

DataSheet: RP164PJ561CS PDF

Country of origin: -

Date code: -

RP164PJ561CS Specifications

Type	Description
Series:	RP
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit Type:	Isolated
Resistance (Ohms):	560
Tolerance:	±5%
Number of Resistors:	4
Resistor Matching Ratio:	-
Resistor-Ratio-Drift:	-
Number of Pins:	8
Power Per Element:	62.5mW
Temperature Coefficient:	±200ppm/°C
Operating Temperature:	-55°C ~ 155°C
Applications:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric), Convex, Long Side Terminals
Supplier Device Package:	1206
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.024" (0.60mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 21 - May 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of RP164PJ561CS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

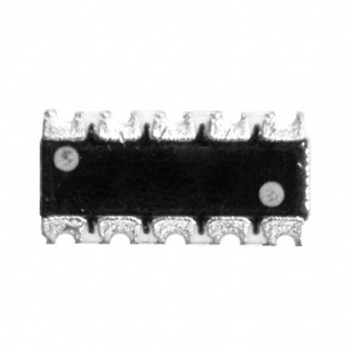

RACF164DFT68K1

RES ARRAY 4 RES 68.1K OHM 1206

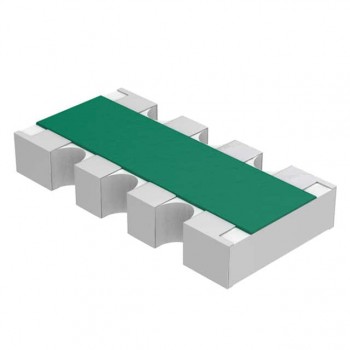

MNR14E0APJ684

RES ARRAY 4 RES 680K OHM 1206

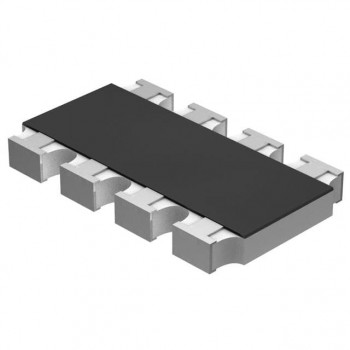

CRA12E083620KJTR
