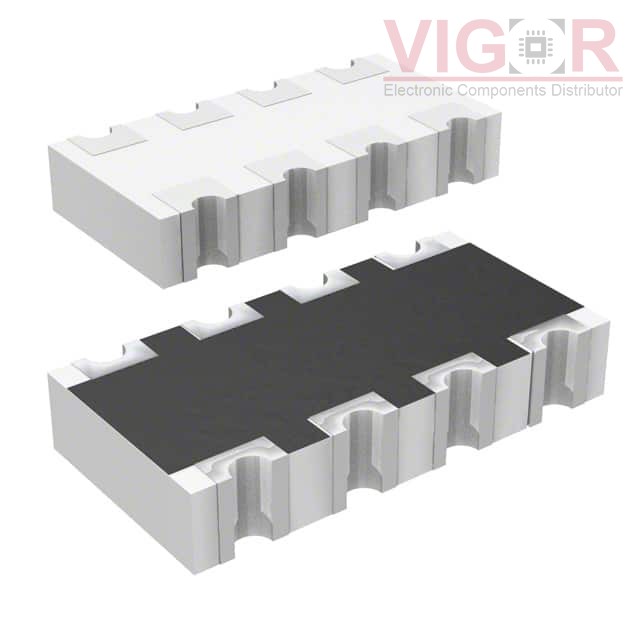

RN104PJ820CS

Part No :: RN104PJ820CS

Manufacturer: Samsung Electro-Mechanics

VIGOR # :: 4257540

Description: RES ARRAY 4 RES 82 OHM 0804

Catalog: Arrays/Networks Resistors

DataSheet: RN104PJ820CS PDF

Country of origin: -

Date code: -

RN104PJ820CS Specifications

Type	Description
Series:	RN
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Circuit Type:	Isolated
Resistance (Ohms):	82
Tolerance:	±5%
Number of Resistors:	4
Resistor Matching Ratio:	-
Resistor-Ratio-Drift:	-
Number of Pins:	8
Power Per Element:	62.5mW
Temperature Coefficient:	±200ppm/°C
Operating Temperature:	-55°C ~ 155°C
Applications:	-
Mounting Type:	Surface Mount
Package / Case:	0804, Concave, Long Side Terminals
Supplier Device Package:	-
Size / Dimension:	0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max):	0.020" (0.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 26 - Jan 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of RN104PJ820CS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

4606X-104-472/472

RES NETWORK 8 RES 4.7K OHM 6SIP

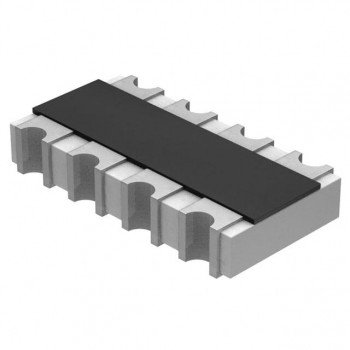

CRA04P083120RJTD
