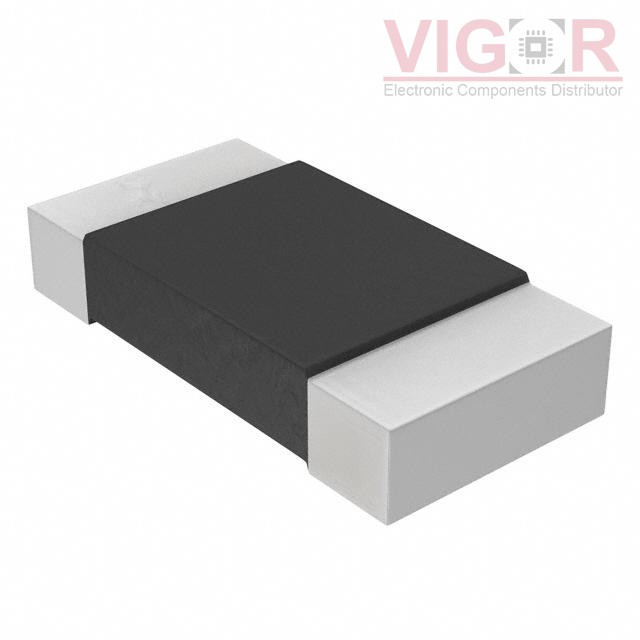

WSL1206R0560FTA

Part No :: WSL1206R0560FTA

Manufacturer: Vishay / Dale

VIGOR # :: 43365

Description: RES 0.056 OHM 1% 1/4W 1206

Catalog: Chip Resistors-Surface Mount

DataSheet: WSL1206R0560FTA PDF

Country of origin: -

Date code: -

WSL1206R0560FTA Specifications

Type	Description
Series:	WSL
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	56 mOhms
Tolerance:	±1%
Power (Watts):	0.25W, 1/4W
Composition:	Metal Element
Features:	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient:	±75ppm/°C
Operating Temperature:	-65°C ~ 170°C
Package / Case:	-
Supplier Device Package:	1206
Ratings:	AEC-Q200
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.035" (0.89mm)
Number of Terminations:	2
Failure Rate:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 20 - Jan 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.31~~	~~$0.31~~
4000	~~$0.31~~	~~$1 232.00~~
8000	~~$0.30~~	~~$2 413.36~~
12000	~~$0.29~~	~~$3 513.24~~
28000	~~$0.29~~	~~$7 987.56~~

Current price of WSL1206R0560FTA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
