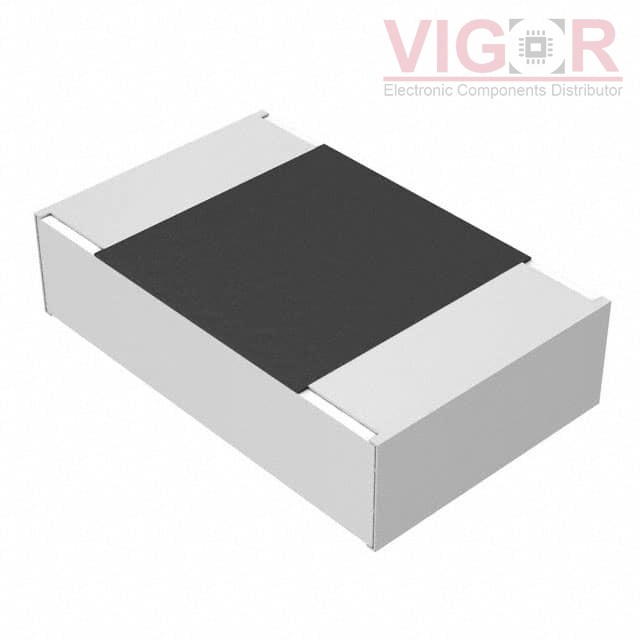

ERA-6AEB3090V

Part No :: ERA-6AEB3090V

Manufacturer: Panasonic

VIGOR # :: 202836

Description: RES 309 OHM 0.1% 1/8W 0805

Catalog: Chip Resistors-Surface Mount

DataSheet: ERA-6AEB3090V PDF

Country of origin: -

Date code: -

ERA-6AEB3090V Specifications

Type	Description
Series:	ERA-6A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Resistance:	309 Ohms
Tolerance:	±0.1%
Power (Watts):	0.125W, 1/8W
Composition:	Thin Film
Features:	Automotive AEC-Q200
Temperature Coefficient:	±25ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Ratings:	AEC-Q200
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.024" (0.60mm)
Number of Terminations:	2
Failure Rate:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 11747

Shipped from

HK warehouse

Expected Shipping Date

Jan 23 - Jan 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.31~~	~~$0.31~~
5000	~~$0.04~~	~~$187.45~~
10000	~~$0.03~~	~~$349.90~~
25000	~~$0.03~~	~~$862.75~~

Current price of ERA-6AEB3090V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
