CHP1206LR560JNT

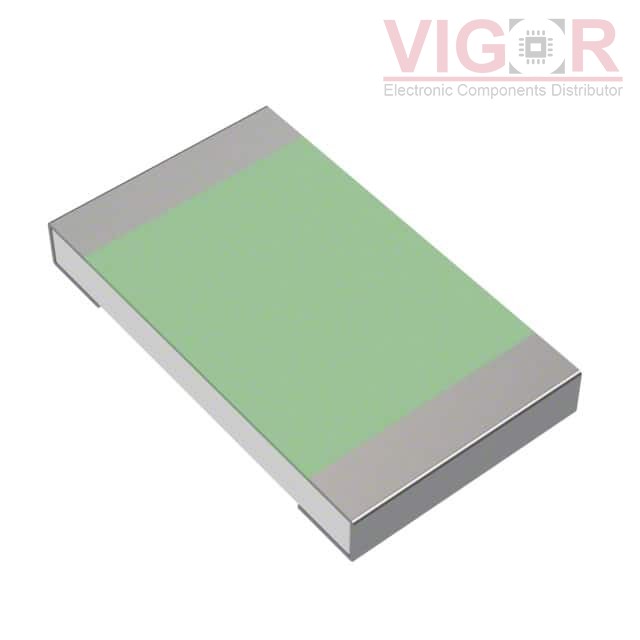

Image is for reference,
please contact us to get the real picture

Part No :: CHP1206LR560JNT

Manufacturer: Vishay / Sfernice

Description: CHP 1206 200PPM U56 5% N TR

Catalog: Chip Resistors-Surface Mount

DataSheet: CHP1206LR560JNT PDF

Availability: 0 pieces

Unit Price: ~~$3.74530~~

Current price of CHP1206LR560JNT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CHP1206LR560JNT Specifications

Type	Description
Series:	CHP
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	560 mOhms
Tolerance:	±5%
Power (Watts):	0.25W, 1/4W
Composition:	Thick Film
Features:	Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:	±200ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206
Ratings:	-
Size / Dimension:	0.118" L x 0.068" W (3.00mm x 1.73mm)
Height - Seated (Max):	0.020" (0.51mm)
Number of Terminations:	2
Failure Rate:	-

Please confirm the specifications of the products when ordering.
