TNPW080523K7BEEA

TNPW080523K7BEEA

Image is for reference,
please contact us to get the real picture

Part No :

TNPW080523K7BEEA

Manufacturer
Vishay / Dale
Description
RES 23.7K OHM 0.1% 1/5W 0805
Catalog
Chip Resistors-Surface Mount
Shipped from
HK warehouse
Expected Shipping Date
Oct 23 - Oct 27 2025
DataSheet
TNPW080523K7BEEA PDF
Availability
0 pieces
Unit Price
$0.17157

Current price of TNPW080523K7BEEA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TNPW080523K7BEEA Specifications
Type Description
Series:TNPW e3
Package:Tape & Reel (TR)
Part Status:Active
Resistance:23.7 kOhms
Tolerance:±0.1%
Power (Watts):0.2W, 1/5W
Composition:Thin Film
Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:±25ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805
Ratings:AEC-Q200
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.022" (0.55mm)
Number of Terminations:2
Failure Rate:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

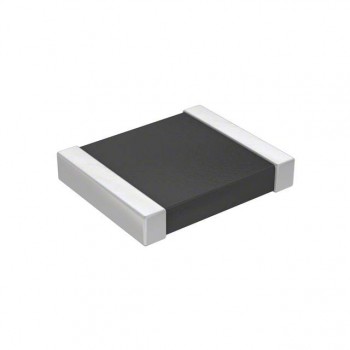

HOT RT1210DRD075K36L

RT1210DRD075K36L

RES SMD 5.36K OHM 0.5% 1/4W 1210
HOT RN73R2ATTD20R8B25

RN73R2ATTD20R8B25

RES 20.8 OHM 0.1% 1/8W 0805

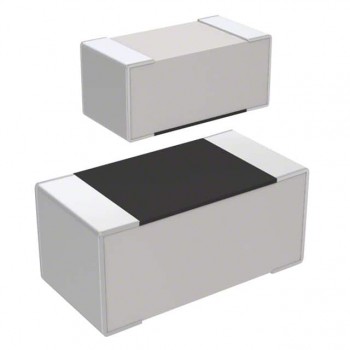

HOT RC0201DR-0733K2L
