WSL2816R0100DEH

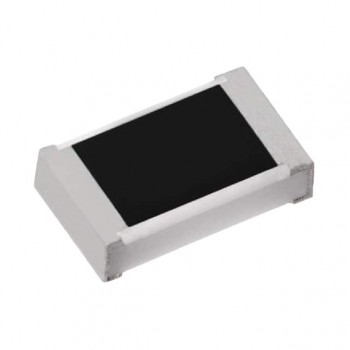

Image is for reference,
please contact us to get the real picture

Part No :: WSL2816R0100DEH

Manufacturer: Vishay / Dale

Description: RES 0.01 OHM 0.5% 2W 2816

Catalog: Chip Resistors-Surface Mount

DataSheet: WSL2816R0100DEH PDF

Availability: 0 pieces

Unit Price: ~~$1.24460~~

Current price of WSL2816R0100DEH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

WSL2816R0100DEH Specifications

Type	Description
Series:	WSL
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	10 mOhms
Tolerance:	±0.5%
Power (Watts):	2W
Composition:	Metal Element
Features:	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient:	±75ppm/°C
Operating Temperature:	-65°C ~ 170°C
Package / Case:	Nonstandard
Supplier Device Package:	2816
Ratings:	AEC-Q200
Size / Dimension:	0.280" L x 0.165" W (7.10mm x 4.20mm)
Height - Seated (Max):	0.035" (0.89mm)
Number of Terminations:	2
Failure Rate:	-
