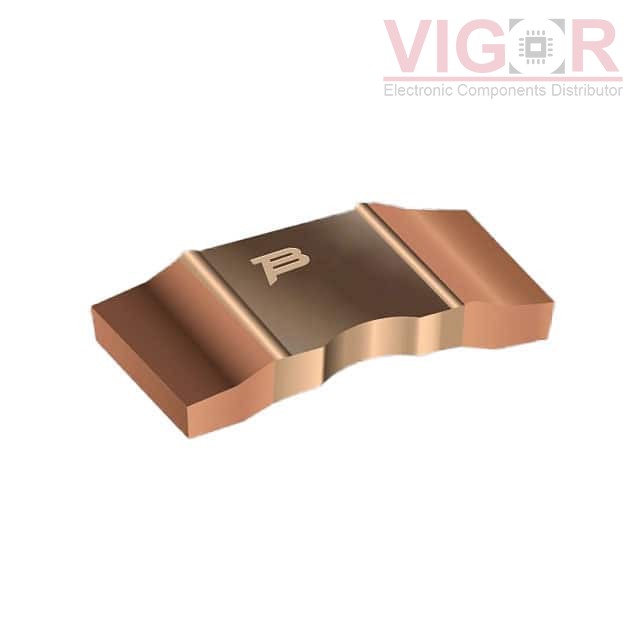

CSS2H-3920K-3L00F

Part No :: CSS2H-3920K-3L00F

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 374934

Description: RES 0.003 OHM 1% 5W 3920

Catalog: Chip Resistors-Surface Mount

DataSheet: CSS2H-3920K-3L00F PDF

Country of origin: -

Date code: -

CSS2H-3920K-3L00F Specifications

Type	Description
Series:	CSS2H-3920
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	3 mOhms
Tolerance:	±1%
Power (Watts):	5W
Composition:	Metal Element
Features:	Current Sense, Moisture Resistant
Temperature Coefficient:	±50ppm/°C
Operating Temperature:	-55°C ~ 170°C
Package / Case:	3920 (1052 Metric)
Supplier Device Package:	3920
Ratings:	-
Size / Dimension:	0.394" L x 0.205" W (10.00mm x 5.20mm)
Height - Seated (Max):	0.020" (0.51mm)
Number of Terminations:	2
Failure Rate:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 03 - Jan 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.58~~	~~$0.58~~
6000	~~$0.58~~	~~$3 455.34~~

Current price of CSS2H-3920K-3L00F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

RG3216P-1541-D-T5

RES SMD 1.54K OHM 0.5% 1/4W 1206

RN73R2BTTD8561A25

RES 8.56K OHM 0.05% 1/4W 1206

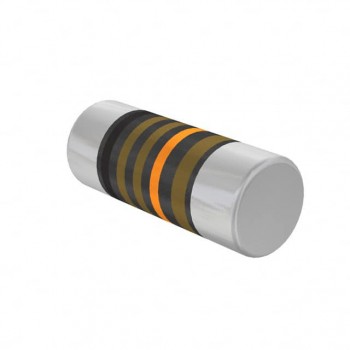

MMA02040C2321FB000
