RCS080522K0JNEA

RCS080522K0JNEA

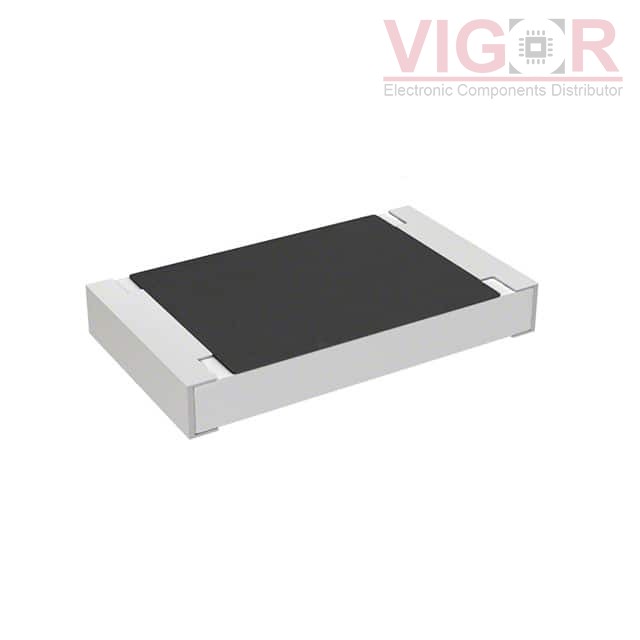

Image is for reference,
please contact us to get the real picture

Part No :

RCS080522K0JNEA

Manufacturer
Vishay / Dale
Description
RES SMD 22K OHM 5% 0.4W 0805
Catalog
Chip Resistors-Surface Mount
Shipped from
HK warehouse
Expected Shipping Date
Nov 04 - Nov 08 2025
DataSheet
RCS080522K0JNEA PDF
Availability
3079 pieces
Unit Price
$0.17000

Current price of RCS080522K0JNEA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RCS080522K0JNEA Specifications
Type Description
Series:RCS e3
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Resistance:22 kOhms
Tolerance:±5%
Power (Watts):0.4W, 2/5W
Composition:Thick Film
Features:Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805
Ratings:AEC-Q200
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.020" (0.50mm)
Number of Terminations:2
Failure Rate:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RT2010BKD07200KL

RT2010BKD07200KL

RES SMD 200K OHM 0.1% 1/2W 2010
HOT RNCP1206FTD365R

RNCP1206FTD365R

RES 365 OHM 1% 1/2W 1206

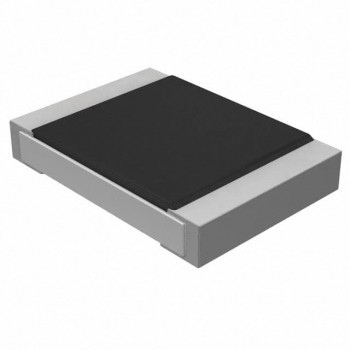

HOT AC1210FR-0747K5L
