PE0603JRF470R01L

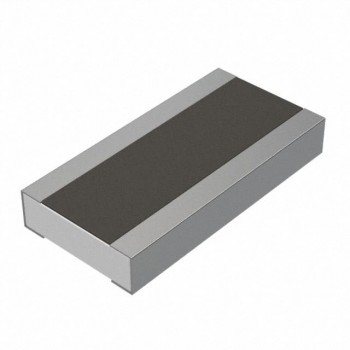

Image is for reference,
please contact us to get the real picture

Part No :: PE0603JRF470R01L

Manufacturer: Yageo

Description: RES 0.01 OHM 5% 0.4W 0603

Catalog: Chip Resistors-Surface Mount

DataSheet: PE0603JRF470R01L PDF

Availability: 0 pieces

Unit Price: ~~$0.09415~~

Current price of PE0603JRF470R01L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PE0603JRF470R01L Specifications

Type	Description
Series:	PE
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	10 mOhms
Tolerance:	±5%
Power (Watts):	0.4W, 2/5W
Composition:	Metal Foil
Features:	Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient:	±100ppm/°C
Operating Temperature:	-55°C ~ 170°C
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Ratings:	AEC-Q200
Size / Dimension:	0.063" L x 0.030" W (1.60mm x 0.76mm)
Height - Seated (Max):	0.024" (0.60mm)
Number of Terminations:	2
Failure Rate:	-
