HSC10022RF

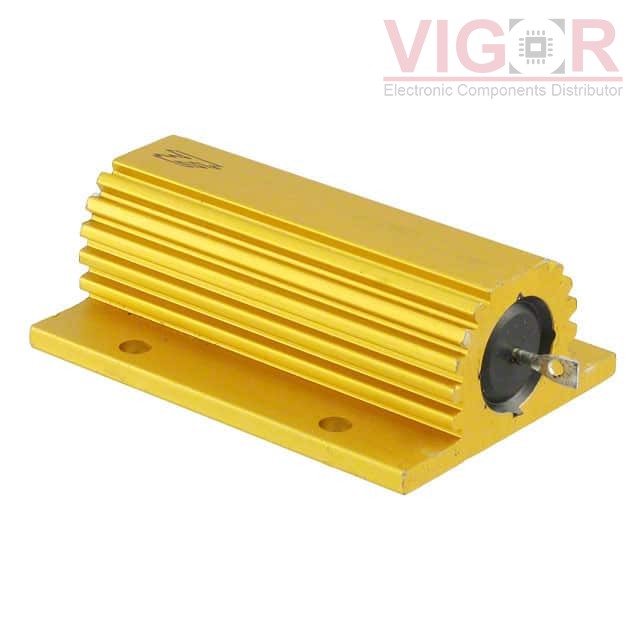

Product image
Product thumb
Part No :

HSC10022RF

Manufacturer
VIGOR # :

909600

Description
RES CHAS MNT 22 OHM 1% 100W
Catalog
Resistors-Chassis Mount
DataSheet
HSC10022RF PDF
Country of origin
-
Date code
-
ads
HSC10022RF Specifications
Type Description
Series:HS, CGS
Package:Bulk
Part Status:Active
Resistance:22 Ohms
Tolerance:±1%
Power (Watts):100W
Composition:Wirewound
Temperature Coefficient:±50ppm/°C
Operating Temperature:-55°C ~ 200°C
Features:-
Coating, Housing Type:Aluminum
Mounting Feature:Flanges
Size / Dimension:2.579" L x 1.870" W (65.50mm x 47.50mm)
Height - Seated (Max):1.024" (26.00mm)
Lead Style:Solder Lugs
Package / Case:Axial, Box
Failure Rate:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 15
Shipped from
HK warehouse
Expected Shipping Date
Apr 19 - Apr 23 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $15.8100 $15.81
10 $14.2250 $142.25
25 $12.6448 $316.12
50 $11.8544 $592.72
100 $11.0640 $1 106.40
250 $10.5108 $2 627.71
500 $10.0762 $5 038.09
1000 $9.6810 $9 681.03

Current price of HSC10022RF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
825F150E

825F150E

RES CHAS MNT 150 OHM 1% 25W

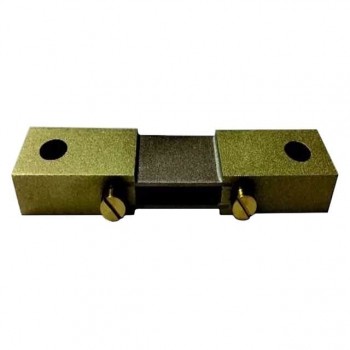

RSH-50-100

RSH-50-100

RES CHAS MNT 0.002 OHM 0.25%

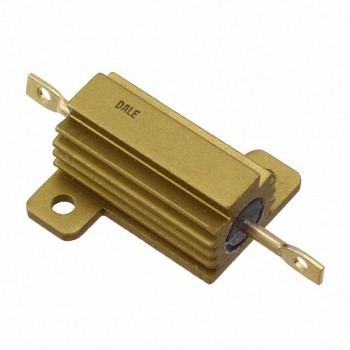

RH02525R00FC02
