HL22507Z500R0JJ

Part No :: HL22507Z500R0JJ

Manufacturer: Vishay / Dale

VIGOR # :: 4342083

Description: RES CHAS MNT 500 OHM 5% 225W

Catalog: Resistors-Chassis Mount

DataSheet: HL22507Z500R0JJ PDF

Country of origin: -

Date code: -

HL22507Z500R0JJ Specifications

Type	Description
Series:	HL
Package:	Bulk
Part Status:	Obsolete
Resistance:	500 Ohms
Tolerance:	±5%
Power (Watts):	225W
Composition:	Wirewound
Temperature Coefficient:	±30ppm/°C
Operating Temperature:	-55°C ~ 350°C
Features:	Moisture Resistant
Coating, Housing Type:	Silicone Coated
Mounting Feature:	Brackets (not included)
Size / Dimension:	1.125" Dia x 10.500" L (28.58mm x 266.70mm)
Height - Seated (Max):	-
Lead Style:	Solder Lugs
Package / Case:	Radial, Tubular
Failure Rate:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 09 - Feb 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of HL22507Z500R0JJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

NHSA251R5J

RES CHAS MNT 1.5 OHM 5% 25W

TL88K10R0

RES CHAS MNT 10 OHM 10% 114W

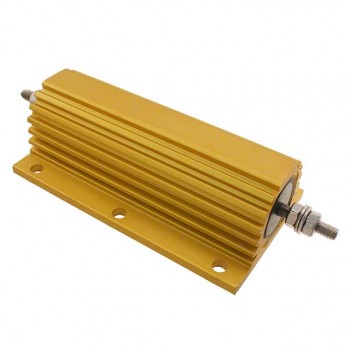

1630028-3
