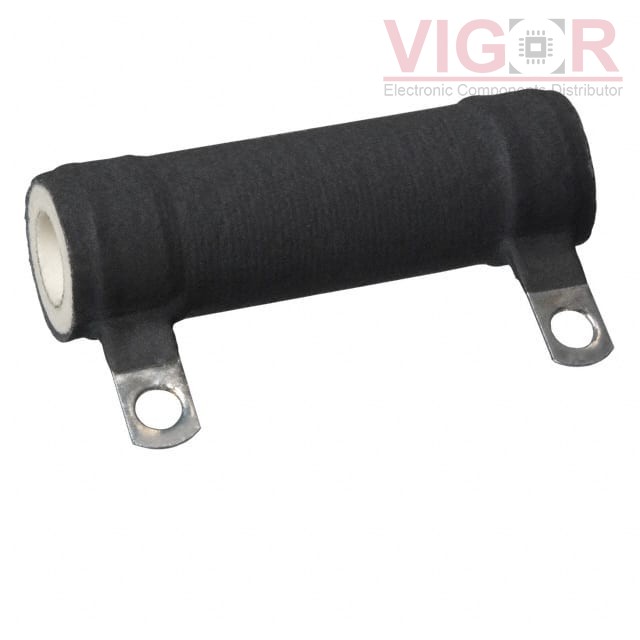

HL02506Z25R00JJ

Part No :: HL02506Z25R00JJ

Manufacturer: Vishay / Dale

VIGOR # :: 4342102

Description: RES CHAS MNT 25 OHM 5% 25W

Catalog: Resistors-Chassis Mount

DataSheet: HL02506Z25R00JJ PDF

Country of origin: -

Date code: -

HL02506Z25R00JJ Specifications

Type	Description
Series:	HL
Package:	Bulk
Part Status:	Obsolete
Resistance:	25 Ohms
Tolerance:	±5%
Power (Watts):	25W
Composition:	Wirewound
Temperature Coefficient:	±30ppm/°C
Operating Temperature:	-55°C ~ 350°C
Features:	Moisture Resistant
Coating, Housing Type:	Silicone Coated
Mounting Feature:	Brackets (not included)
Size / Dimension:	0.563" Dia x 2.000" L (14.29mm x 50.80mm)
Height - Seated (Max):	-
Lead Style:	Solder Lugs
Package / Case:	Radial, Tubular
Failure Rate:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 26 - Oct 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of HL02506Z25R00JJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
