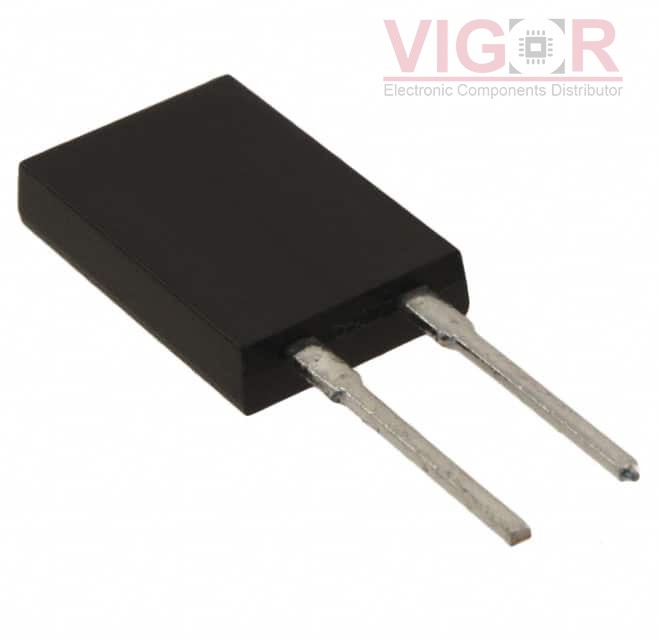

TR20JBXR100

Part No :: TR20JBXR100

Manufacturer: Stackpole Electronics, Inc.

VIGOR # :: 783636

Description: RES 0.1 OHM 20W 5% TO220

Catalog: Resistors-Through Hole

DataSheet: TR20JBXR100 PDF

Country of origin: -

Date code: -

TR20JBXR100 Specifications

Type	Description
Series:	TR
Package:	Bulk
Part Status:	Active
Resistance:	100 mOhms
Tolerance:	±5%
Power (Watts):	20W
Composition:	Thick Film
Features:	Moisture Resistant, Non-Inductive
Temperature Coefficient:	-
Operating Temperature:	-65°C ~ 150°C
Package / Case:	TO-220-2 Full Pack
Supplier Device Package:	TO-220
Size / Dimension:	0.410" L x 0.125" W (10.41mm x 3.18mm)
Height - Seated (Max):	0.650" (16.52mm)
Number of Terminations:	2
Failure Rate:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 21 - Jan 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.15~~	~~$3.15~~
100	~~$3.15~~	~~$315.00~~

Current price of TR20JBXR100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

CMF5516K200FHEB

RES 16.2K OHM 1/2W 1% AXIAL

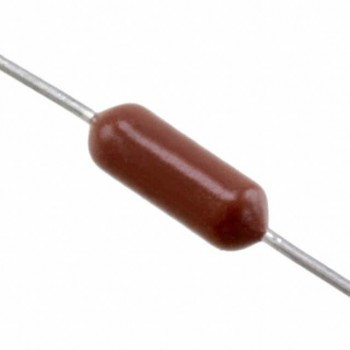

RN60D3324FRE6
