AC01000005600JA100

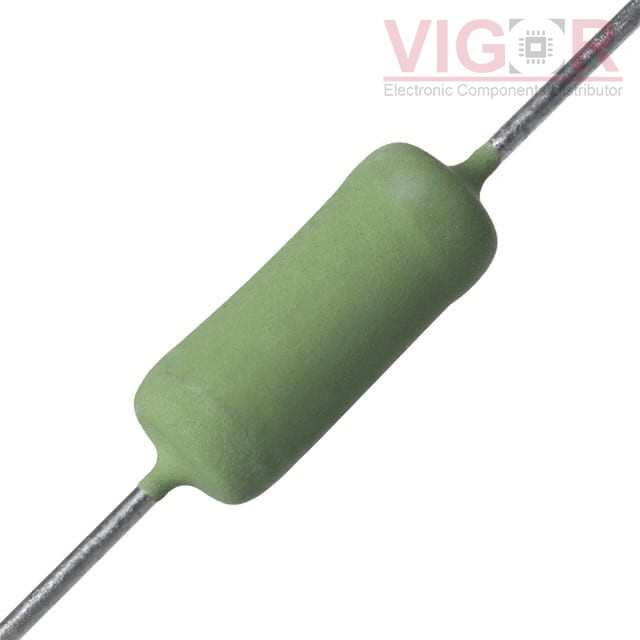

Image is for reference,
please contact us to get the real picture

Part No :: AC01000005600JA100

Manufacturer: Vishay BC Components/Beyshlag/Draloric

Description: RES 560 OHM 1W 5% AXIAL

Catalog: Resistors-Through Hole

Shipped from: HK warehouse

Expected Shipping Date: Oct 21 - Oct 25 2025

DataSheet: AC01000005600JA100 PDF

Availability: 0 pieces

Unit Price: ~~$0.15823~~

Current price of AC01000005600JA100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AC01000005600JA100 Specifications

Type	Description
Series:	AC
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Active
Resistance:	560 Ohms
Tolerance:	±5%
Power (Watts):	1W
Composition:	Wirewound
Features:	Flame Retardant Coating, Pulse Withstanding, Safety
Temperature Coefficient:	100/ +180ppm/°C
Operating Temperature:	-40°C ~ 275°C
Package / Case:	Axial
Supplier Device Package:	Axial
Size / Dimension:	0.169" Dia x 0.433" L (4.30mm x 11.00mm)
Height - Seated (Max):	-
Number of Terminations:	2
Failure Rate:	-

Please confirm the specifications of the products when ordering.
