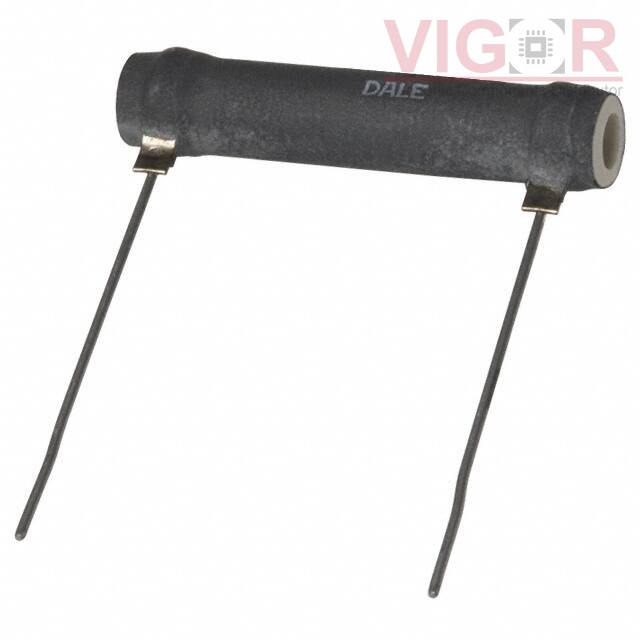

HLW12R1Z20R00JF

Part No :: HLW12R1Z20R00JF

Manufacturer: Vishay / Dale

VIGOR # :: 4333847

Description: RES 20 OHM 5% 12W TUBULAR WW

Catalog: Resistors-Through Hole

DataSheet: HLW12R1Z20R00JF PDF

Country of origin: -

Date code: -

HLW12R1Z20R00JF Specifications

Type	Description
Series:	HLW
Package:	Bulk
Part Status:	Obsolete
Resistance:	20 Ohms
Tolerance:	±5%
Power (Watts):	12W
Composition:	Wirewound
Features:	-
Temperature Coefficient:	±30ppm/°C
Operating Temperature:	-55°C ~ 350°C
Package / Case:	Radial
Supplier Device Package:	-
Size / Dimension:	1.750" L x 0.406" W (44.45mm x 10.32mm)
Height - Seated (Max):	-
Number of Terminations:	2
Failure Rate:	-
