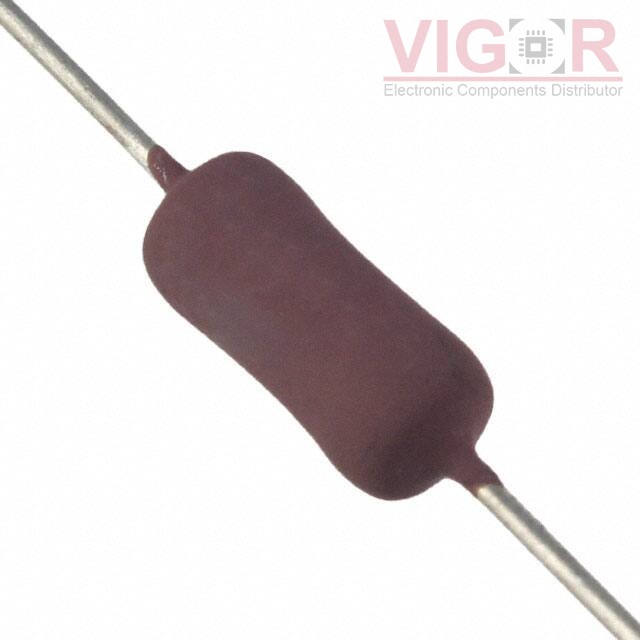

PWR4522AS56R0JA

Part No :: PWR4522AS56R0JA

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4334558

Description: RES 56 OHM 3W 5% AXIAL

Catalog: Resistors-Through Hole

DataSheet: PWR4522AS56R0JA PDF

Country of origin: -

Date code: -

PWR4522AS56R0JA Specifications

Type	Description
Series:	PWR4522
Package:	Tape & Box (TB)
Part Status:	Obsolete
Resistance:	56 Ohms
Tolerance:	±5%
Power (Watts):	3W
Composition:	Wirewound
Features:	Flame Proof, Fusible, Pulse Withstanding, Safety
Temperature Coefficient:	±90ppm/°C
Operating Temperature:	-55°C ~ 350°C
Package / Case:	Axial
Supplier Device Package:	Axial
Size / Dimension:	0.217" Dia x 0.453" L (5.50mm x 11.50mm)
Height - Seated (Max):	-
Number of Terminations:	2
Failure Rate:	-
