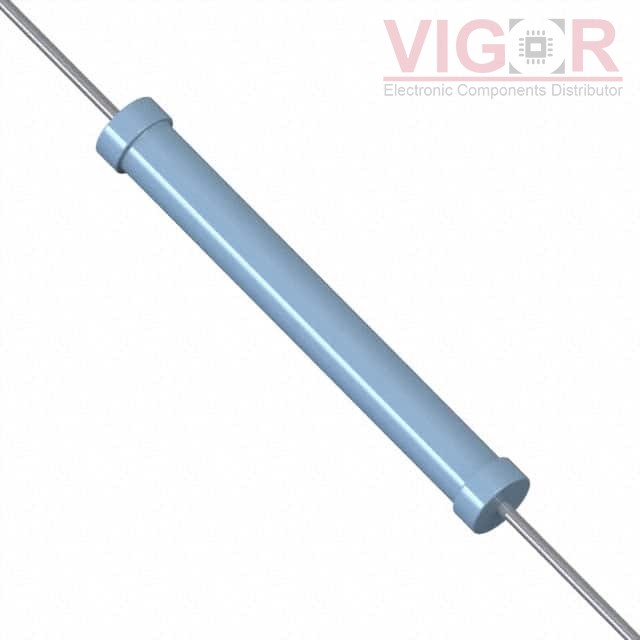

RNX1002M20JNLB

Part No :: RNX1002M20JNLB

Manufacturer: Vishay / Dale

VIGOR # :: 4337427

Description: RES 2.2M OHM 5% 2.5W AXIAL

Catalog: Resistors-Through Hole

DataSheet: RNX1002M20JNLB PDF

Country of origin: -

Date code: -

RNX1002M20JNLB Specifications

Type	Description
Series:	RNX
Package:	Bulk
Part Status:	Obsolete
Resistance:	2.2 MOhms
Tolerance:	±5%
Power (Watts):	2.5W
Composition:	Metal Oxide Film
Features:	Flame Proof, High Voltage, Safety
Temperature Coefficient:	±200ppm/°C
Operating Temperature:	-55°C ~ 225°C
Package / Case:	Axial
Supplier Device Package:	Axial
Size / Dimension:	0.140" Dia x 1.040" L (3.56mm x 26.42mm)
Height - Seated (Max):	-
Number of Terminations:	2
Failure Rate:	-
