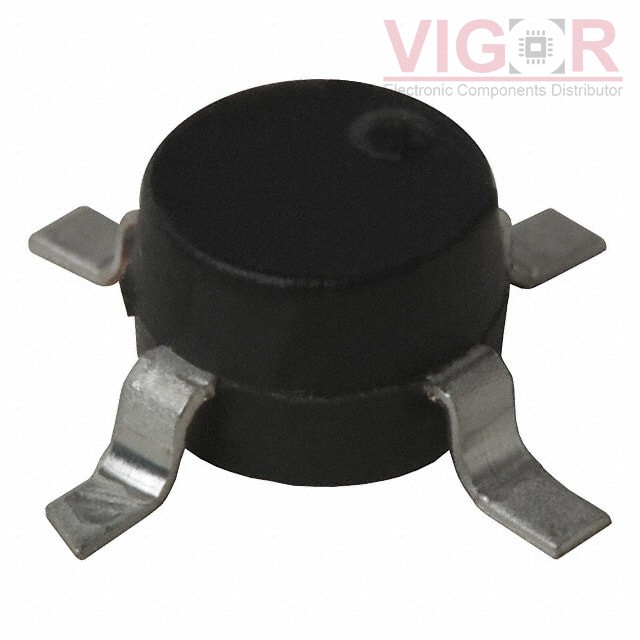

MSA-1105-TR1G

Part No :: MSA-1105-TR1G

Manufacturer: Broadcom

VIGOR # :: 4971443

Description: IC AMP ISM 50MHZ-1.3GHZ 05 PLAST

Catalog: RF Amplifiers

DataSheet: MSA-1105-TR1G PDF

Country of origin: -

Date code: -

MSA-1105-TR1G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Frequency:	50MHz ~ 1.3GHz
P1dB:	17.5dBm
Gain:	10dB ~ 12dB
Noise Figure:	3.6dB
RF Type:	ISM, PCS, WLL, 802.16/WiMax
Voltage - Supply:	4.4V ~ 6.6V
Current - Supply:	80mA
Test Frequency:	500MHz
Mounting Type:	Surface Mount
Package / Case:	4-SMD (05 Plastic)
Supplier Device Package:	05 Plastic Package

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 14 - Jan 18 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of MSA-1105-TR1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
