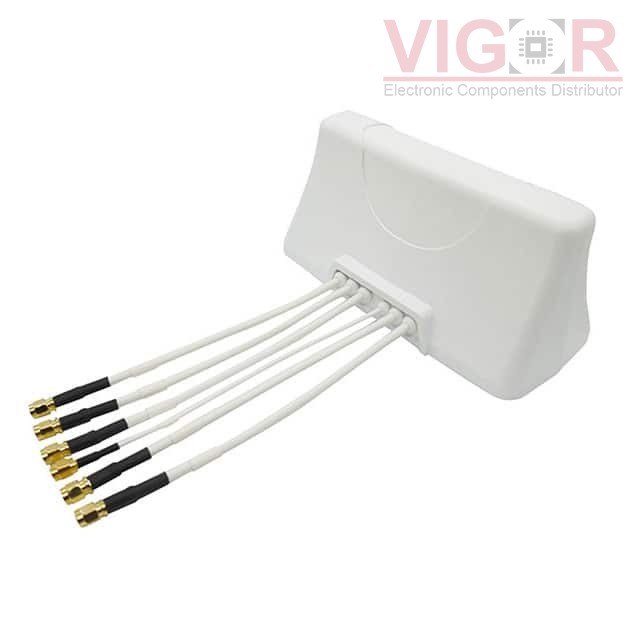

RAZ62312AM

Part No :: RAZ62312AM

Manufacturer: PulseLarsen Antenna

VIGOR # :: 4069605

Description: RF ANT 802MHZ/1.582GHZ MOD ADH

Catalog: RF Antennas

DataSheet: RAZ62312AM PDF

Country of origin: -

Date code: -

RAZ62312AM Specifications

Type	Description
Series:	RAZORBACK
Package:	Bulk
Part Status:	Active
RF Family/Standard:	Cellular, Navigation, WiFi
Frequency Group:	Wide Band
Frequency (Center/Band):	802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz
Frequency Range:	644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
Antenna Type:	Module
Number of Bands:	6
VSWR:	2
Return Loss:	-
Gain:	4.6dBi, 4.9dBi, 6dBi, 6.6dBi
Power - Max:	45 W
Features:	Cable - 5.18m, LNA
Termination:	SMA Male (3), RP-SMA Male (3)
Ingress Protection:	IP67
Mounting Type:	Adhesive
Height (Max):	3.644" (92.55mm)
Applications:	Beidou, DSRC, Galileo, GLONASS, GPS, LTE, Wi-Fi

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 28 - Jan 01 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$163.12~~	~~$163.12~~
10	~~$155.24~~	~~$1 552.43~~
25	~~$149.62~~	~~$3 740.45~~

Current price of RAZ62312AM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
