W3544A

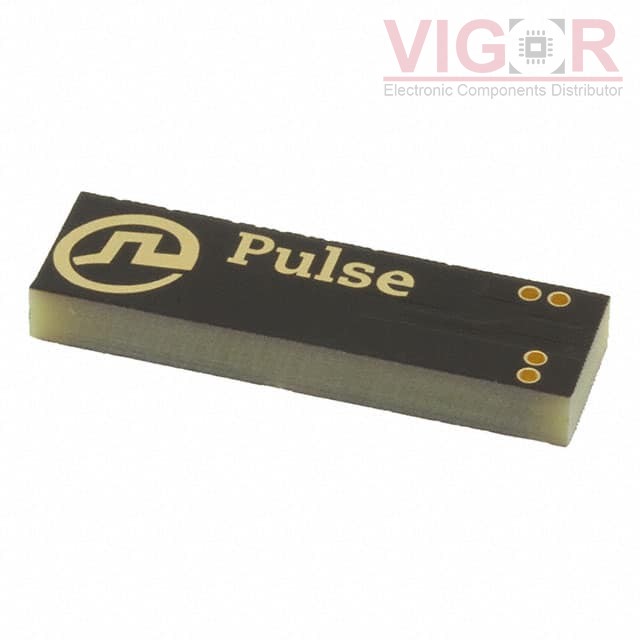

Product image
Product thumb
Part No :

W3544A

Manufacturer
PulseLarsen Antenna
VIGOR # :

4069711

Description
RF ANT 850MHZ/900MHZ CHIP SLD
Catalog
RF Antennas
DataSheet
W3544A PDF
Country of origin
-
Date code
-
ads
W3544A Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
RF Family/Standard:Cellular
Frequency Group:Wide Band
Frequency (Center/Band):850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range:824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type:Chip
Number of Bands:5
VSWR:-
Return Loss:-4.1dB, -4.6dB, -16.3dB, -12.3dB
Gain:-1.9dBi, -1.3dBi, -1.3dBi, -1.66dBi
Power - Max:-
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.118" (3.00mm)
Applications:GSM
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1960
Shipped from
HK warehouse
Expected Shipping Date
Dec 28 - Jan 01 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.21 $2.21
140 $1.69 $236.25
280 $1.50 $420.00
700 $1.31 $918.75
980 $1.18 $1 161.30
1400 $1.09 $1 522.50
3500 $1.01 $3 543.75
7000 $0.98 $6 825.00

Current price of W3544A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
