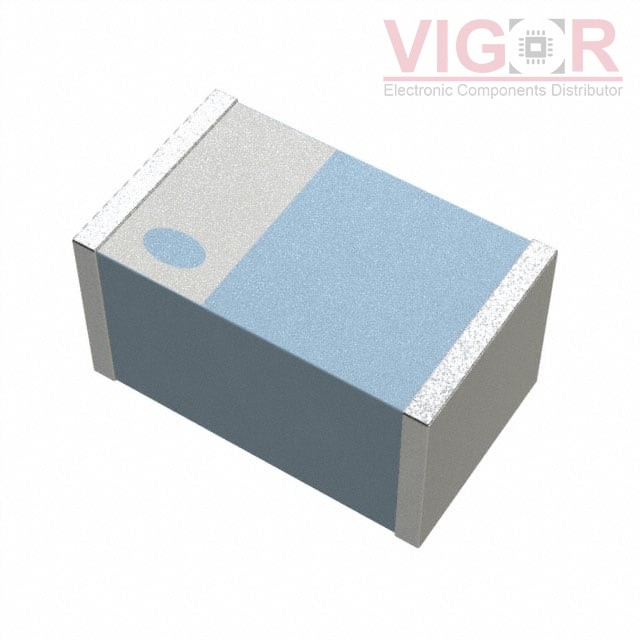

ANT2012LL00R2400A

Part No :: ANT2012LL00R2400A

Manufacturer: Yageo

VIGOR # :: 4070044

Description: RF ANT 2.45GHZ CHIP SOLDER SMD

Catalog: RF Antennas

DataSheet: ANT2012LL00R2400A PDF

Country of origin: -

Date code: -

ANT2012LL00R2400A Specifications

Type	Description
Series:	2012
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	802.15.4, Bluetooth, General ISM, WiFi
Frequency Group:	UHF (2GHz ~ 3GHz)
Frequency (Center/Band):	2.45GHz
Frequency Range:	2.4GHz ~ 2.5GHz
Antenna Type:	Chip
Number of Bands:	1
VSWR:	-
Return Loss:	10dB
Gain:	3.77dBi
Power - Max:	1 W
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.043" (1.10mm)
Applications:	Bluetooth, ISM, Wi-Fi, Zigbee™

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 739

Shipped from

HK warehouse

Expected Shipping Date

Dec 29 - Jan 02 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.88~~	~~$0.88~~
4000	~~$0.37~~	~~$1 499.24~~
8000	~~$0.36~~	~~$2 848.56~~
12000	~~$0.34~~	~~$4 112.16~~
28000	~~$0.33~~	~~$9 295.16~~

Current price of ANT2012LL00R2400A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
