2030070001

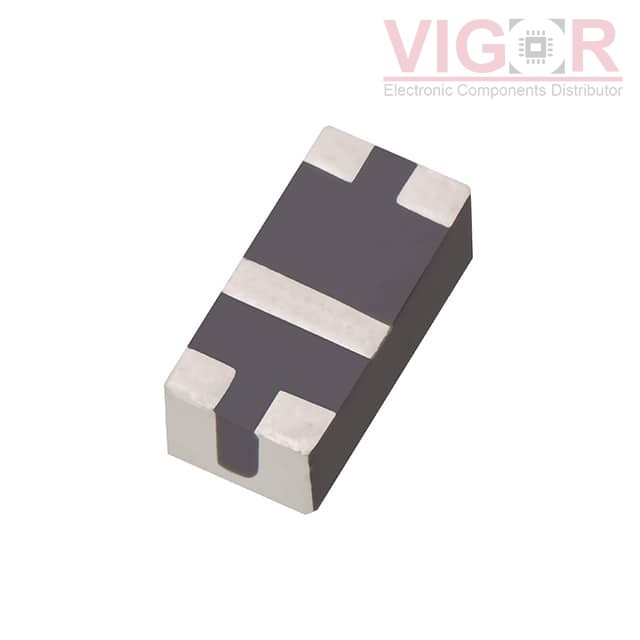

Image is for reference,
please contact us to get the real picture

Part No :: 2030070001

Manufacturer: Woodhead - Molex

Description: RF ANT 1.575GHZ/1.602GHZ CHIP

Catalog: RF Antennas

DataSheet: 2030070001 PDF

Availability: 2718 pieces

Unit Price: ~~$0.95000~~

Current price of 2030070001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2030070001 Specifications

Type	Description
Series:	203007
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
RF Family/Standard:	Navigation, WiFi
Frequency Group:	Wide Band
Frequency (Center/Band):	1.575GHz, 1.602GHz, 2.4GHz, 5.4GHz
Frequency Range:	1.561GHz ~ 1.602GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz
Antenna Type:	Chip
Number of Bands:	4
VSWR:	-
Return Loss:	-10dB
Gain:	1dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.043" (1.10mm)
Applications:	GNSS, Wi-Fi

Please confirm the specifications of the products when ordering.
