ACAR3005-C2WB

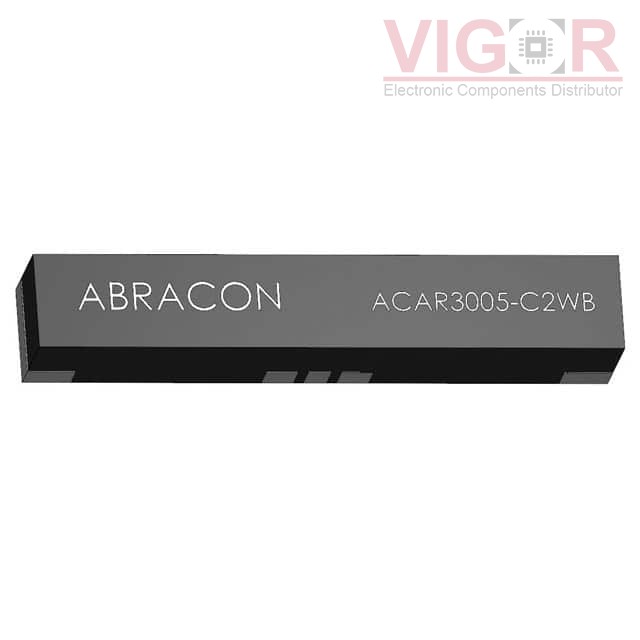

Image is for reference,
please contact us to get the real picture

Part No :: ACAR3005-C2WB

Manufacturer: Abracon

Description: WIFI/LPWA CERAMIC CHIP ANT

Catalog: RF Antennas

DataSheet: ACAR3005-C2WB PDF

Availability: 345 pieces

Unit Price: ~~$4.82000~~

Current price of ACAR3005-C2WB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACAR3005-C2WB Specifications

Type	Description
Series:	ACAR
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	802.15.4, Bluetooth, General ISM, WiFi
Frequency Group:	UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band):	892MHz, 2.45GHz
Frequency Range:	824MHz ~ 960MHz, 2.4GHz ~ 2.5GHz
Antenna Type:	Chip
Number of Bands:	2
VSWR:	3.5
Return Loss:	-5.27dB, -5.47dB, -6.92dB, -8.85dB, 9.44dB
Gain:	0.08dBi, 0.84dBi, 1.18dBi, 2.2dBi, 2.61dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.197" (5.00mm)
Applications:	Bluetooth, ISM, LoRa, Sigfox, Wi-Fi, Zigbee™

Please confirm the specifications of the products when ordering.
