1052630003

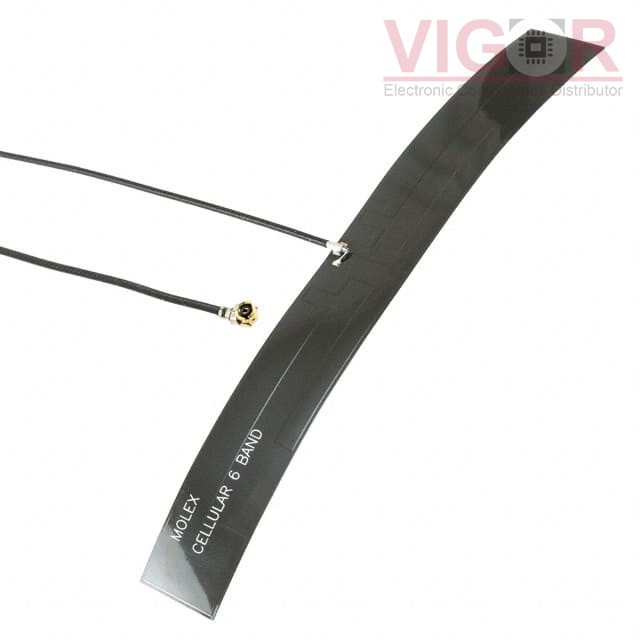

Image is for reference,
please contact us to get the real picture

Part No :: 1052630003

Manufacturer: Woodhead - Molex

Description: RF ANT 850MHZ/900MHZ FLAT 200MM

Catalog: RF Antennas

DataSheet: 1052630003 PDF

Availability: 0 pieces

Unit Price: ~~$5.61000~~

Current price of 1052630003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1052630003 Specifications

Type	Description
Series:	105263
Package:	Tray
Part Status:	Active
RF Family/Standard:	Cellular
Frequency Group:	Wide Band
Frequency (Center/Band):	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz
Frequency Range:	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz
Antenna Type:	Flat Patch
Number of Bands:	6
VSWR:	-
Return Loss:	-7.5dB, -8dB, -8.5dB, -8.8dB, -9dB, -12dB
Gain:	1.3dBi, 1.7dBi, 2dBi, 2.2dBi, 3dBi
Power - Max:	2 W
Features:	Cable - 200mm
Termination:	U.FL (UMCC), IPEX MHF1
Ingress Protection:	-
Mounting Type:	Adhesive
Height (Max):	0.004" (0.10mm)
Applications:	GSM, LTE, UMTS

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Nov 13 - Nov 17 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$5.61000	$5.61
10	$5.00925	$50.0925
25	$4.50799	$112.69975
100	$4.10734	$410.734
312	$3.70662	$1156.46544
624	$3.32595	$2075.3928
1248	$2.80502	$3500.66496
2808	$2.66477	$7482.67416

Hot Products

OMB.5900.B10F21

OMB.5900.B10F21 BARRACUDA 5.9GHZ

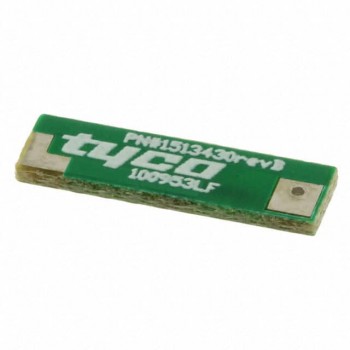

1513430-1

RF ANT 2.4GHZ PCB TRACE SLDR SMD

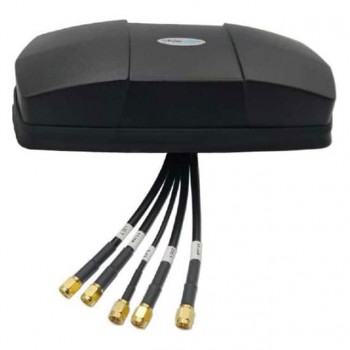

ARM52211MM
