ANTX100P001B24553

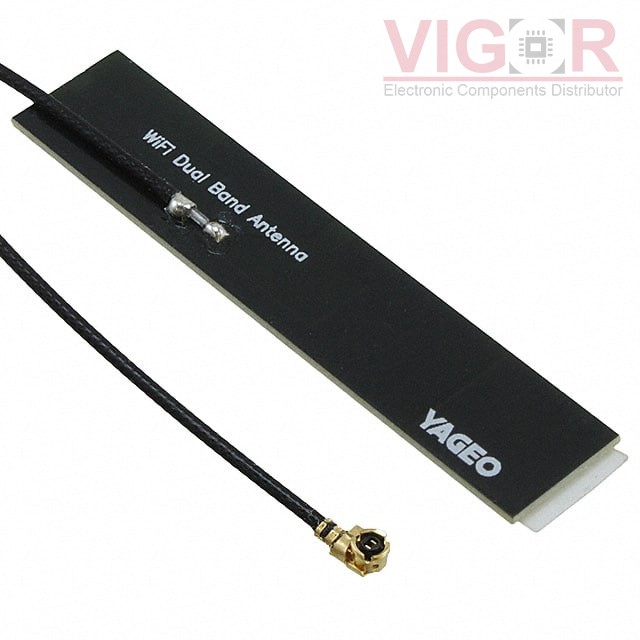

Image is for reference,
please contact us to get the real picture

Part No :: ANTX100P001B24553

Manufacturer: Yageo

Description: RF ANT 2.4GHZ/5.5GHZ FLAT PATCH

Catalog: RF Antennas

DataSheet: ANTX100P001B24553 PDF

Availability: 5786 pieces

Unit Price: ~~$1.96000~~

Current price of ANTX100P001B24553 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ANTX100P001B24553 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
RF Family/Standard:	802.15.4, Bluetooth, WiFi
Frequency Group:	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band):	2.4GHz, 5.5GHz
Frequency Range:	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz
Antenna Type:	Flat Patch
Number of Bands:	2
VSWR:	2.5
Return Loss:	-
Gain:	4.6dBi, 3.9dBi
Power - Max:	1 W
Features:	-
Termination:	U.FL (UMCC), IPEX MHF1
Ingress Protection:	-
Mounting Type:	Adhesive
Height (Max):	0.037" (0.95mm)
Applications:	Bluetooth, WLAN, Zigbee™

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 5786

Shipped from

HK warehouse

Expected Shipping Date

Nov 14 - Nov 18 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$1.96000	$1.96
10	$1.77351	$17.7351
25	$1.58322	$39.5805
100	$1.42500	$142.5
250	$1.26665	$316.6625
500	$1.10833	$554.165
1000	$0.91833	$918.33
2500	$0.85500	$2137.5
5000	$0.82332	$4116.6
