001-0016

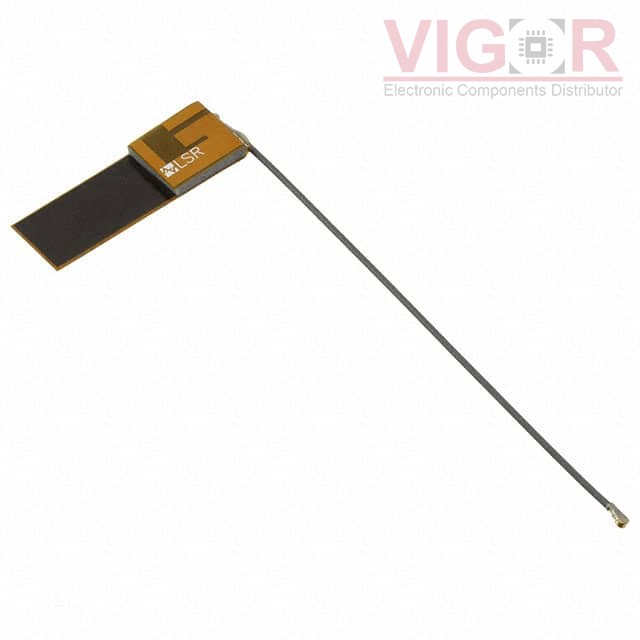

Image is for reference,
please contact us to get the real picture

Part No :: 001-0016

Manufacturer: Laird Connectivity

Description: RF ANT 2.4GHZ/5.5GHZ PCB TRACE

Catalog: RF Antennas

DataSheet: 001-0016 PDF

Availability: 4354 pieces

Unit Price: ~~$4.29000~~

Current price of 001-0016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

001-0016 Specifications

Type	Description
Series:	FlexPIFA™
Package:	Bulk
Part Status:	Active
RF Family/Standard:	-
Frequency Group:	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band):	2.4GHz, 5.5GHz
Frequency Range:	2.4GHz ~ 2.485GHz, 4.9GHz ~ 5.9GHz
Antenna Type:	PCB Trace
Number of Bands:	2
VSWR:	3
Return Loss:	-
Gain:	2.5dBi, 3dBi
Power - Max:	-
Features:	Cable - 100mm
Termination:	U.FL (UMCC), IPEX MHF1
Ingress Protection:	-
Mounting Type:	Adhesive
Height (Max):	0.098" (2.50mm)
Applications:	-

Please confirm the specifications of the products when ordering.
