APAKM4012-C2G3D

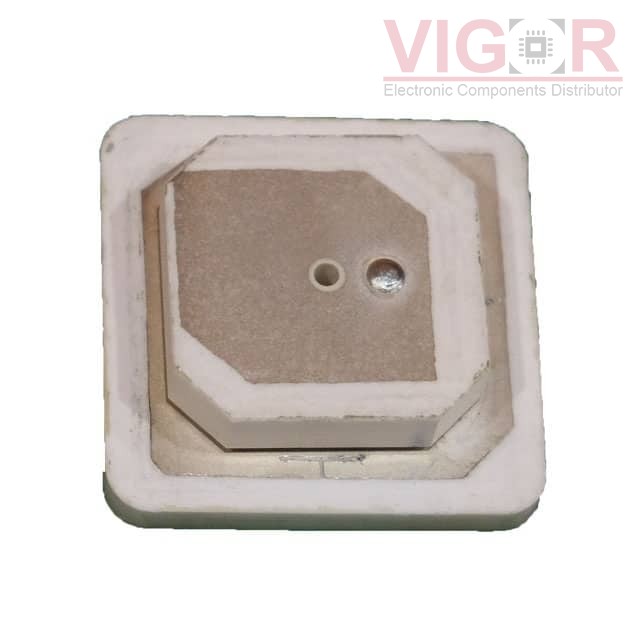

Image is for reference,
please contact us to get the real picture

Part No :: APAKM4012-C2G3D

Manufacturer: Abracon

Description: RF ANT GNSS + SDARS STACK PATCH

Catalog: RF Antennas

DataSheet: APAKM4012-C2G3D PDF

Availability: 79 pieces

Unit Price: ~~$18.88000~~

Current price of APAKM4012-C2G3D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APAKM4012-C2G3D Specifications

Type	Description
Series:	APAK
Package:	Tray
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band):	1.561GHz, 1.575GHz, 1.589GHz, 1.602GHz, 2.332GHz
Frequency Range:	1.561GHz ~ 1.602GHz, 2.32GHz ~ 2.345GHz
Antenna Type:	Ceramic Patch
Number of Bands:	2
VSWR:	-
Return Loss:	-20dB, -6dB, -6dB, -30dB, -15dB
Gain:	2.7dBi, 4dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Through Hole
Height (Max):	0.480" (12.20mm)
Applications:	Beidou, Galileo, GLONASS, GNSS, GPS, SDARS

Please confirm the specifications of the products when ordering.
