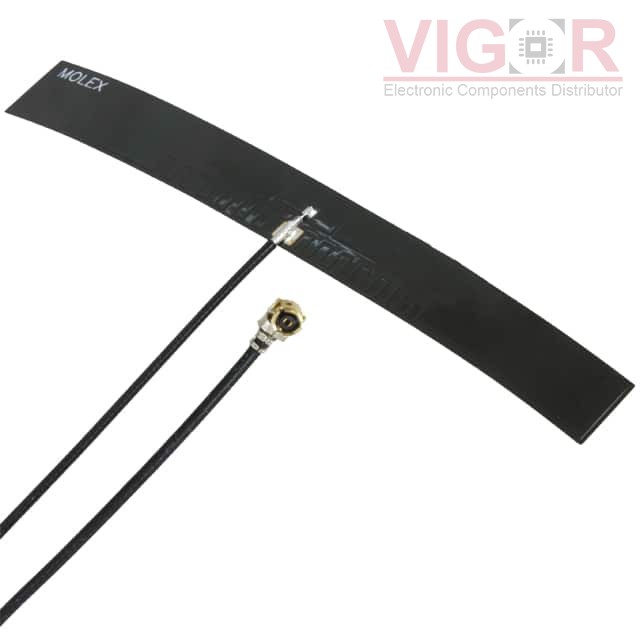

1052620001

Image is for reference,
please contact us to get the real picture

Part No :: 1052620001

Manufacturer: Woodhead - Molex

Description: RF ANT 866MHZ/915MHZ FLAT 100MM

Catalog: RF Antennas

DataSheet: 1052620001 PDF

Availability: 780 pieces

Unit Price: ~~$3.74000~~

Current price of 1052620001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1052620001 Specifications

Type	Description
Series:	105262
Package:	Tray
Part Status:	Active
RF Family/Standard:	-
Frequency Group:	UHF (300MHz ~ 1GHz)
Frequency (Center/Band):	866MHz, 915MHz
Frequency Range:	863MHz ~ 870MHz, 902MHz ~ 928MHz
Antenna Type:	Flat Patch
Number of Bands:	2
VSWR:	-
Return Loss:	-11dB, -13dB
Gain:	0.4dBi, 1.4dBi
Power - Max:	2 W
Features:	Cable - 100mm
Termination:	U.FL (UMCC), IPEX MHF1
Ingress Protection:	-
Mounting Type:	Adhesive
Height (Max):	0.004" (0.10mm)
Applications:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 780

Shipped from

HK warehouse

Expected Shipping Date

Nov 13 - Nov 17 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$3.74000	$3.74
10	$3.34138	$33.4138
25	$3.00677	$75.16925
100	$2.73957	$273.957
416	$2.47226	$1028.46016
832	$2.00455	$1667.7856
1248	$1.87091	$2334.89568
2912	$1.77736	$5175.67232
5408	$1.71054	$9250.60032

Hot Products

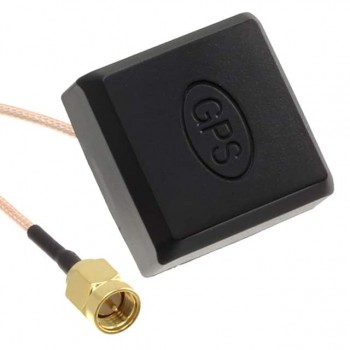

TANGO21/0.3M/SMAM/S/S/26
